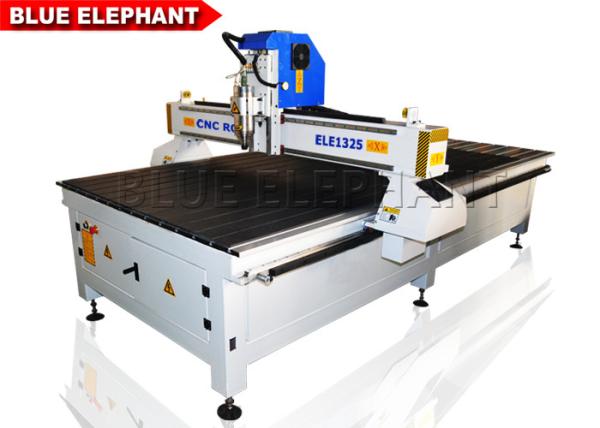

    1325 Advertising company use cnc router , aluminium cutting machine for wood furniture

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1325
    Certification : CE, ISO9001, SGS, CIQ
    Price : US $3,999 - 6,999 / Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

    1325 Advertising company use cnc router , aluminium cutting machine for wood furniture

    1325 advertising company use cnc router , aluminium cutting machine for wood furniture


    Features:


    • Working area: 1300mm*2500mm*200mm
    • Steel gantry , strong structure
    • T-slot & PVC working table
    • 3KW Changsheng water cooling spindle
    • 3.7kw Fuling inverter
    • Z axis with Taiwan TBI Ball screw transmission
    • X,Y axis with high precision helical rack gear transmission
    • X,Y,Z axis with Taiwan TBI/PMI/HIWIN Linear Guide
    • Original NCstudio controller
    • FL118 stepper motor , YAKO 2608 driver
    • Double motors for Y axis
    • Oil lubrication system
    • Artcam /Type 3 software
    • Voltage:380V, 3phase, 50/60HZ(220v for optional)


    Technical Parameters:


    NumberDescriptionParameter
    1X,Y,Z Working Area1300x2500x200mm
    3X,Y,Z Traveling Positioning Accuracy±0.03/300mm
    4X,Y,Z Repositioning Accuracy±0.03mm
    5Table SurfaceT-slot Table
    6Spindle3kw Changsheng water cooling spindle
    7X, Y Structure#20Taiwan HIWIN Linear guide and helical rack
    8Z StructureBall screw and #20 Taiwan HIWIN Linear guide
    9Driver and MotorStepper
    10Max. Rapid Travel Rate45000mm/min
    11Max. Working Speed30000mm/min
    12SoftwareArtcam /Type 3 software
    13Spindle Speed0-24000RPM
    14Lubrication systemManual
    15Inverter3.7kw Fuling Inverter
    16Command LanguageG Code
    17Control SystemNCstudio
    18Computer InterfaceUSB
    19Flash Memory512M(U Disk)
    20ColletER20
    21X,Y Resolution<0.01mm
    22Software CompatibilityType3 Software, (Option: Artcam Software)
    23Running Environment Temperature0 - 45 Centigrade
    24Relative Humidity30% - 75%

    PS:All the working area and specifications can be customized according to your requests.


    Applications:

    1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,

    craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.


    2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,

    crystal word making, blaster molding, and other advertising materials derivatives making.


    3. die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as

    artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.


    4. relief sculpture and 3D engraving


    Main parts:
