    2030 CNC Wood router machine ATC , 3D cnc router machine woodworking for acrylic

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE2030
    Certification : CE, ISO9001, SGS, CIQ
    Price : US $9,800 - 12,600 / Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

    2030 CNC Wood router machine ATC , 3D cnc router machine woodworking for acrylic

    Good price 1325 cnc wood router cutting machine ATC , 3D cnc router machine woodworking for acrylic


    Features:

    • 2000*3000*200mm working area
    • 5.5kw Water Cooling Spindle
    • 5.5KW Fuling inverter
    • DSP A57control system
    • Leadshine Hybrid servo
    • Taiwan HIWIN linear guide rails#20
    • Helical rack gears for X,Y axis
    • Taiwan TBI gears for Z axis
    • Vacuum working table
    • Manual tool sensor calibration
    • 7.5 kw air vacuum pump
    • New type 1.5kw double dust collect
    • rails, motors,Spindel . must be save from dustlimit switch for X,Y,Z axis
    • Soft limit switch
    • Type 3 and Artcam 2012 type with postprocessor ,higher than Artcam 9.1
    • AC220/50HZ ,1-phase

    Advantages:


    1. Working area :2000*3000*200 mm for big size materials ,with 5.5 kw ATC water cooling spindle ,Changsheng brand ,top quality in China.
    2. DSP A57 control system ,not need connect with computer ,very easy to operate .
    3. Automatic tool change for four tools ,customized for customers ,work for different wood working.

    4. X,Y,Z axis is with dusthood.
    5. Mainly for MDF and wood cutting and engraving.


    Technical Parameters:


    DescriptionParameter
    X,Y,Z Working Area2000x3000x200mm
    Spindle5.5kw Changsheng atc water cooling spindle
    Inverter5.5kw Fuling Inverter
    Motor driverLeadshine mixed servo
    Spindle Speed0-24000RPM
    Control SystemDSP A57
    Table SurfaceT-slot vacuum Table
    X, Y Structure20#Taiwan HIWIN Linear guide and helical rack
    Z StructureBall screw and#20 Taiwan HIWIN Linear guide
    Lubrication systemAuto oil lubrication system
    Command LanguageG Code
    Computer InterfaceUSB
    ColletBT40
    X,Y Resolution<0.01mm
    Software CompatibilityType3 ,Artcam 2012 Software)
    Running Environment Temperature0 - 45 Centigrade
    Relative Humidity30% - 75%

    PS:All the working area and specifications can be customized according to your requests.


    Applications:


    1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,

    craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.


    2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,

    crystal word making, blaster molding, and other advertising materials derivatives making.


    3. die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as

    artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.


    4. relief sculpture and 3D engraving

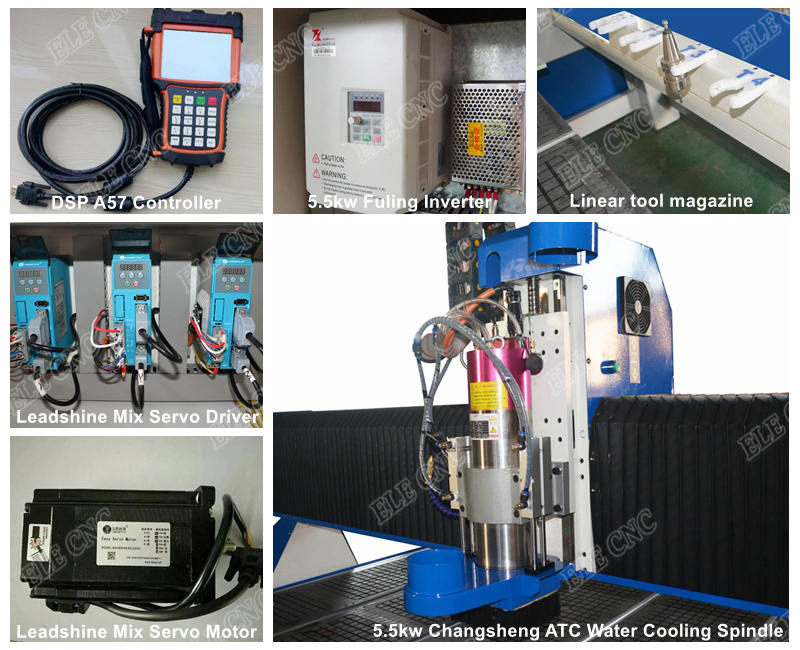

    Main parts:
