    ELE 1325 2D 3D CNC Router Machine , wooden door making machine for kitchen cabinet

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1325
    Certification : CE, ISO9001, SGS, CIQ
    Price : US $ 3800 - 5200 / Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

    ELE 1325 2D 3D CNC Router Machine , wooden door making machine for kitchen cabinet

    ELE 1325 2d 3d cnc woodwork machine , wooden door making machine for kitchen cabinet


    Features:



    1, 1300*2500*200mm working size

    2, 4.5Kw Italian HSD air-cooling spindle

    3, 5.5kw Taiwan DELTA inverter

    4, T slot & PVC table

    5, Taiwan HIWIN Square Rail for X, Y, Z axis #20

    6, stepper motor FL118 , Leadshine 860H driver

    7, NC studio control system

    8, Ucancam 2012 or ARTCAM 2012 software

    9, Heavy duty Body construction with 6 legs

    10, 24 pieces router bits

    11, Manual lubrication system

    12, Plywood case package


    Technical Parameters:


    DescriptionParameter
    X,Y,Z Working Area1300x2500x200mm
    Control systemNCStudio
    Table SurfaceT-slot Table
    Spindle4.5kw HSD air cooling spindle
    X, Y Structure#20Taiwan HIWIN Linear guide and helical rack
    Z StructureBall screw and #20 Taiwan HIWIN Linear guide
    Driver and MotorStepper
    Inverter5.5kw Delta Inverter
    Max. Rapid Travel Rate45000mm/min
    Max. Working Speed30000mm/min
    SoftwareArtcam /UCANCAM/Type 3 software
    Spindle Speed0-18000RPM
    Lubrication systemManual
    Command LanguageG Code
    Computer InterfaceUSB
    Flash Memory512M(U Disk)
    ColletER32
    X,Y Resolution<0.01mm
    Running Environment Temperature0 - 45 Centigrade
    Relative Humidity30% - 75%

    PS:All the working area and specifications can be customized according to your requests.


    Applications:


    Furniture:ideally suitable for processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.


    Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.

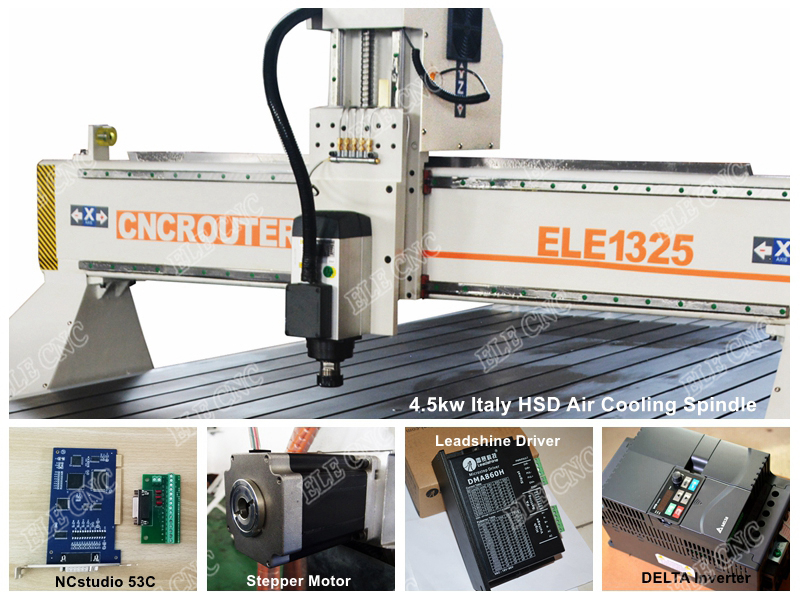

    Main parts:
