    ELE 1530 Carbon Fiber Laser Engraving And Cutting Machine For Steel Metal Cut

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1530
    Certification : CE, ISO9001, SGS, CIQ
    Price : US $49,999 - 199,999 / Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    ELE 1530 Carbon Fiber Laser Engraving And Cutting Machine For Steel Metal Cut

    ELE 1530 carbon fiber laser cutting machine , sheet metal laser cutting machine for steel cut

    Product Description

    Instructions of fiber laser cutting machine:

    • High performance.fiber transmission can make sure the same quality cutting effect in every point of the material.
    • High efficiency,fast cutting speed.photoelectric conversion rate about 35%.
    • Low gas consumption.it has the cutting technology specially for steel board and produce no gas when cutting .
    • Low power consumption .environment -friendly and energy -saving,reduce 20%-30% power compard with co2 cutting machine.
    • Maintenance-free ,fiber transmision without reflection lens,can save time in light path adjustment .
    • fiber exerts its features better in thin metal sheet cutting.

    Features of fiber laser cutting machine:

    • Stability and reliability of light path system and controlsystem.
    • Imported original fiber lasers,high and stable,lifespan is over 100000 hours.
    • Higher cutting quality and efficiency,cutting speed is up to 60 m/min.
    • High performance german reducer,gear and rack;Japanese guide and ball scerw.


    Parameters of cnc fiber laser cutting machine:

    Model1530 Fiber laser cutting machine
    Working Area1500*3000mm
    Laser Power500W
    Laser Wave Length1064nm
    Working TableSawtooth
    Maximum Idle Running Speed1200mm/s
    Position Accuracy±0.05mm/m
    Position Speed20m/min
    Minimum Line Width± 0.02mm
    Cutting Thickness≤6mm
    Control SystemCypcut
    Position Typered dot
    Power Consumption≤12KW
    Working Voltage380V/50Hz
    Auxiliary Gasoxygen,nitrogen,air
    Working life of fiber moduleMore than 100000 hours
    Fiber laser cutting headLasermech made in USA
    Focus lensLasermech made in USA
    Driver system1500W Fuji servo motor made in Japan
    Liner guider systemPMI made in Taiwan , (Option THK made in Japan)
    Transmit systemDual Rack & Pinion type
    Rack systemHerion made in Germany
    Chain systemIgus made in Germany
    Warranty time1.5 years
    Delivery time20 days
    Application


    Applicable Industry:

    This machine is widely used in various industries such as advertising decoration,kitchen ware,engineering machinery,steel and iron,automobile,metal plate chassis,air-conditioner manufacturing,metal plate cutting,etc.

    Applicable Materials:

    This machine is mainly used for cutting metal plates such as stainless steel,cabon steel,galvanized plate,various alloy,etc.


    Product details

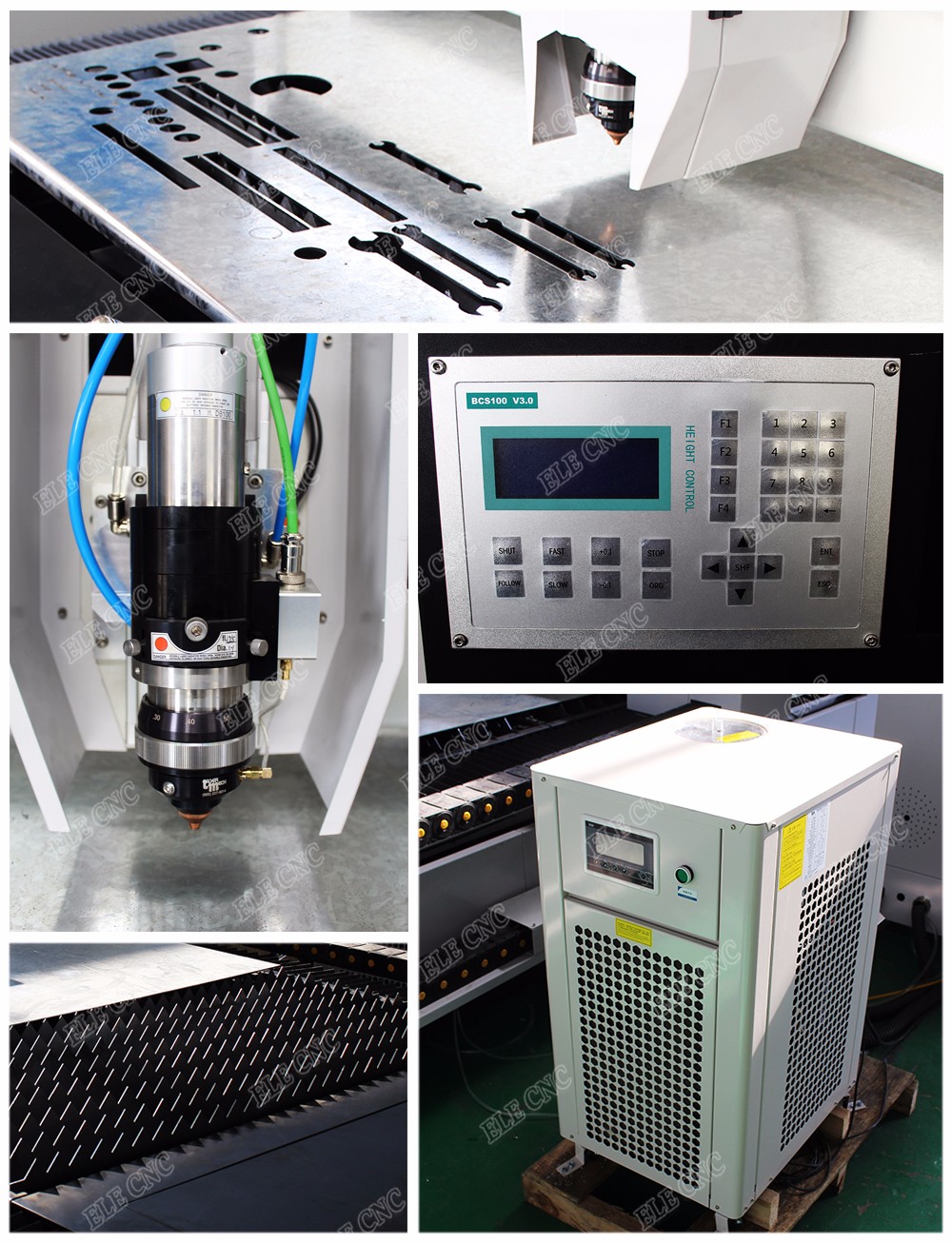

    Main parts of fiber laser cutting machine:
