ELE 1330 3d cnc wood carving router , china cnc wood router for
sign making
Features:
- 4.5 kw HSD ATC air cooling spindle from Italy
- 5.5kw Delta inverter from Taiwan
- NCstudio control system
- 750w Leadshine mixed servo motor
- 7.5kw Whirlpool vacuum pump
- Vacuum and T-slot working table
- #20 HINWIN square linear guide
- Taiwan TBI ball screw
- 380V,3PH,50HZ(220V for optional)
Parameters:
| Description | Parameter |
| X,Y,Z Working Area | 1300x2500x200mm |
| Spindle | 4.5kw HSD air cooling spindle |
| Inverter | 5.5kw Delta Inverter |
| Motor driver | 750w Leadshine mixed servo |
| Spindle Speed | 0-18000RPM |
| Control System | NCstudio |
| Table Surface | T-slot&vacuum Table |
| X, Y Structure | #20 Taiwan HIWIN Linear guide and helical rack |
| Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000mm/min |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Lubrication system | Manual |
| Command Language | G Code |
| Computer Interface | USB |
| Collet | ER32 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
Applicantion:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
craft sash,composite gates, cupboard doors, interior doors, sofa
legs, headboards and so on.
2. Advertising industry: advertising identification, sigh making, Acrylic engraving and
cutting,crystal word making, blaster molding, and other advertising
materials derivatives making.
3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as
well as artificial marble, sand, plastic sheeting,PVC pipe, wooden
planks and other non-metallic mold.
4. relief sculpture and 3D engraving
Q:This is the first time I use this kind of machine, is it easy to
operate?
Re: There are english manual or guide video that show how to use
machine.
If there is still have any question, please contact us by e-mail /
skype/ phone /trademanager online service at any time.
Q:If machine have any problem after I receive it, how can I do ?
Re:Free parts send to you in machine warranty period if machine
have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
Q: MOQ
Re: 1 set machine, mixed order is also welcomed.
Q: How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment
methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma
invoice.
5. We prepare for your order in terms of the proforma invoice after
confirming your full payment. And 100% quality check before
shipping.
6. Send your order by air or by sea.
Our Factory
Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province .
We have always been developing to the research and manufacturer of
CNC router machine and plasma cutting machine .
We have our R & D department , Quality control department , and
after sale & service department .
Our products are widely used in Woodworking , Advertising , Model ,
Electric , CAD / CAM Industry model , Clothing , Package Printing ,
Marking , Laser sealing and so on .
We had got CE and SGS certification , always offer best quality machine .
Welcome to visit our factory!

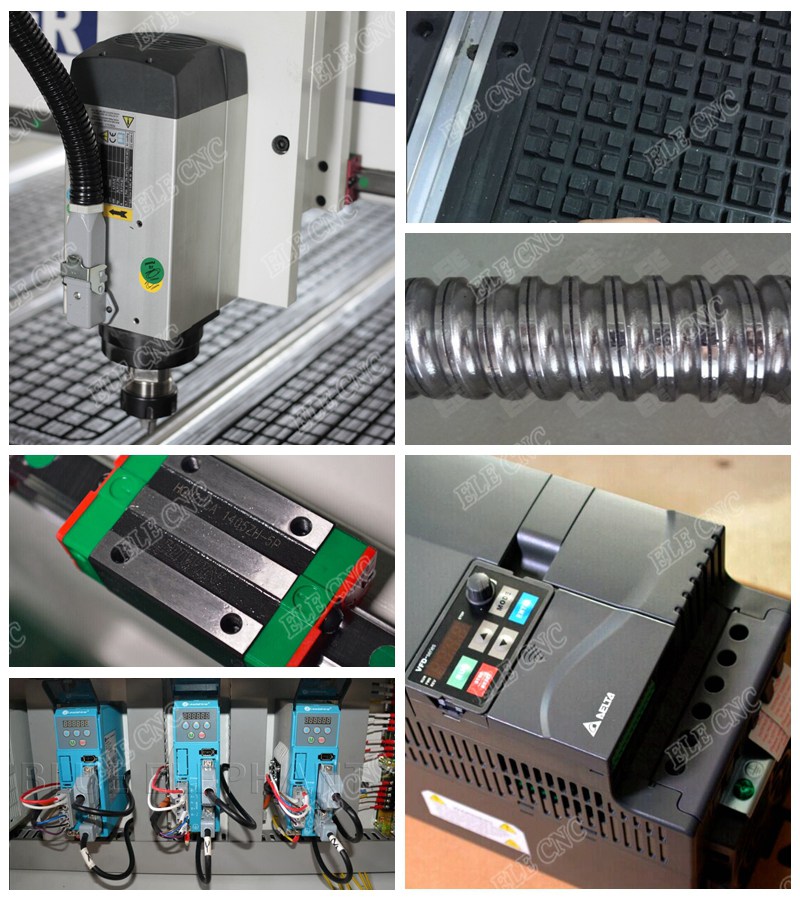

Main parts:
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. inner package: Stretchy film and plastic film for humidity.
3. We can package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
Guarantee and After-sale service:
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the
clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
Welcome to our factory:
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been
developed to the research and manufacturer of CNC router machine
and laser cutting engraving machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler
Platform!
- Just looking forward to service every customer, like you.
Contact us:
Mobile: 0086-15064026772
Web: www.elephant-cnc.com
