1325 Combination Woodworking Cnc Router Cutting Machine With DSP A11 Control

    Buy cheap 1325 Combination Woodworking Cnc Router Cutting Machine With DSP A11 Control from wholesalers

    Buy cheap 1325 Combination Woodworking Cnc Router Cutting Machine With DSP A11 Control from wholesalers
    • Buy cheap 1325 Combination Woodworking Cnc Router Cutting Machine With DSP A11 Control from wholesalers

    1325 Combination Woodworking Cnc Router Cutting Machine With DSP A11 Control

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1325
    Certification : CE, ISO9001, SGS, CIQ
    Price : US $3,999 - 6,999 / Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    1325 Combination Woodworking Cnc Router Cutting Machine With DSP A11 Control

    1325 combination woodworking machine , cnc machine router with best price

    Product Description

    Features:

    • Working area: 1300mm*2500mm*200mm
    • Steel gantry , strong structure
    • 3.5kw Changsheng air cooling spindle
    • 3.7kw Fuling inverter
    • Z axis with Taiwan TBI Ball screw transmission
    • X,Y axis with high precision helical rack gear transmission
    • X,Y,Z axis with Taiwan TBI/PMI/HIWIN Linear Guide
    • DSP A11 control ststem
    • FL118 stepper motor , Leadshine 860H driver
    • Artcam /Type 3 software
    • Voltage:380V, 3phase, 50/60HZ(220v for optional)

    Technical Parameters:


    X,Y,Z Working Area1300x2500x200mm
    Table SurfaceT-slot Table
    Spindle3.5kw Changsheng air cooling spindle
    X, Y Structure#20 Taiwan HIWIN Linear guide and helical rack
    Z StructureTBI Ball screw and #20 Taiwan HIWIN Linear guide
    Driver and MotorStepper
    SoftwareArtcam /Type 3 software
    Spindle Speed0-18000RPM
    Lubrication systemManual
    Inverter3.7kw Fuling Inverter
    Command LanguageG Code
    Control SystemDSP A11
    Computer InterfaceUSB
    CollectER20
    Software CompatibilityType3 Software, (Option: Artcam Software)
    Running Environment Temperature0 - 45 Centigrade
    Relative Humidity30% - 75%

    Application:

    1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,

    craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.


    2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,

    crystal word making, blaster molding, and other advertising materials derivatives making.


    3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as

    artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.


    4. relief sculpture and 3D engraving


    Our Services


    1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
    2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

    3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
    4, We offer 24 hours technical support by call, and email.
    5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
    6, We can record videos of operating the laser machine.
    7, Free training course in our factory.
    8. Machine will be adjusted before it is delivered , operation disk/CD was included.


    Packaging and shipping:


    1. Outside Package:Standard export wooden case .

    2. Inner package:strech film .
    For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.

    For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.

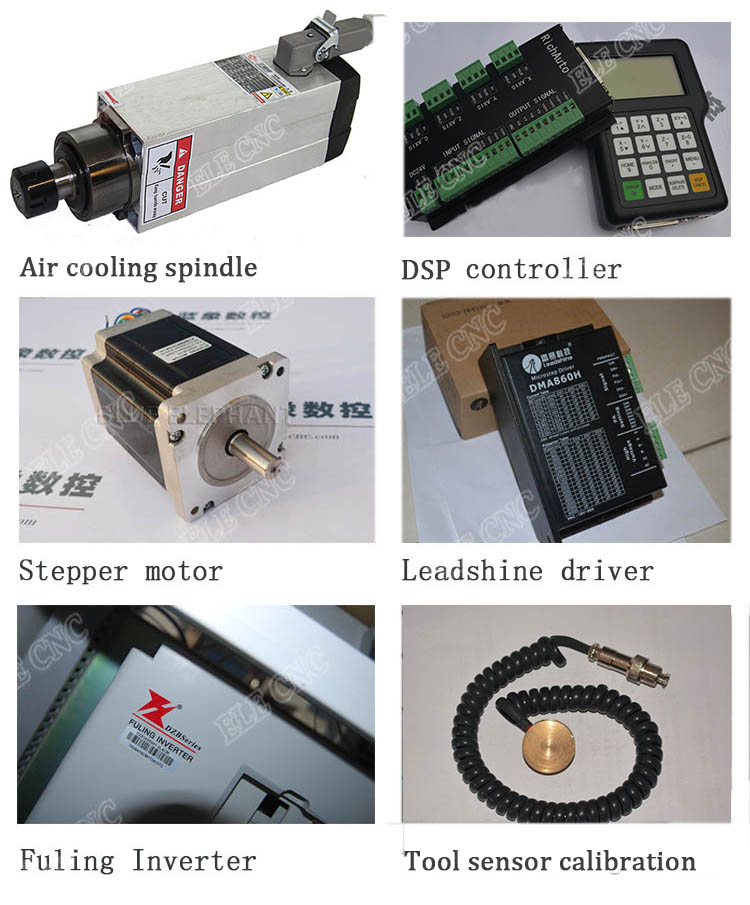

    Main Parts:

    We are looking for agents from all over the world,Welcome to visit our factory!
