2 Our machines adopt the vacuum & T-slot dual-use table, you can use
the
clips to fix the small-scale materials, which can save the vacuum
pump ele
-ctricity, and you can adopt the vacuum adsorption to fix
large-scale mater
-ial.so the processing is convenient, simple and efficient.
3 High quality Taiwan imported Linear guide has much longer life 10
times
of life-time than round guide; It is stable and hard to distort.
4 3KW top brand water cooling spindlehas much powerful strength; So
for
processing your softmetal it will have higher efficiency.It will
have a better
effect .
5 the DSP control system is a very popular control system with high
quality.
All of our big machines use the DSP control system.
6 Double motor for Y axis make the cnc machine work with more
strength ;

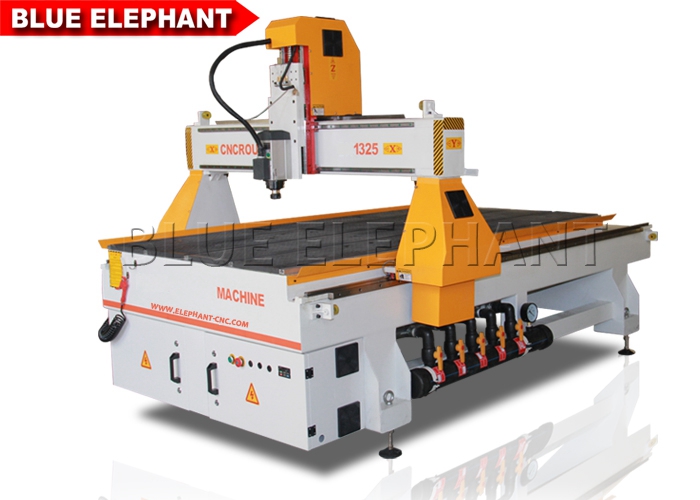

Technical Parameter and Machine Parts
| Working Area | 1300*2500*200mm |
| Traveling Positioning Accuracy | ±0.03/300mm |
| Repositioning Accuracy | ±0.03mm |
| Table | vacuum & T-slot Table |
| Frame | Welded Structure |
| X, Y axis | helical rack 1.25M, Hiwin 20# Rail Linear Bearing |
| Z axis | Hiwin Rail 20# Linear Bearing & Taiwan TBI Ball Screw |
| Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 3KW Italy HSD air cooling spindle |
| Spindle Speed | 0-18000RPM |
| Drive Motors | Japan Yaskawa servo |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| Command Language | G Code |
| Operating System | DSP (Options: Ncstudio/Mach3 PC Software) |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| Collet | ER25 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/UcancameV9/Artcam Software |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
Applied Industries
1. WoodFurniture Industry: Wave Plate, fine pattern, antique
furniture, wooden door, screen, craft sash, composite gates,
cupboard doors, interior doors, sofa legs, hea-dboards and so on.
2. Advertising industry: advertising identification, sigh making,
Acrylic engraving and cutting, crystal word making, blaster
molding, and other advertising materials deri-vatives making.
3. Die industry: A sculpture of copper, aluminum, iron and other
metal mold s, as well as artificial marble, sand, plastic sheeting,
PVC pipe, wooden planks and other non-
metallic mold.
4. Relief sculpture and 3D engraving
5. Cylindrical object
After-Sales Service
1, Within 7 days since your local customs clearance: if the cnc machine’s any parts
has any pr
-oblems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if
the cnc ma
-chine parts have anyproblems, we can change the old machine parts
to new ones free, but
you should pay all the shipping cost.
3, Exceed warranty period: if the cnc machine parts have any problems, we can offer new ma
-chine parts with cost price and you also should pay all the
shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the laser machine
7, Free training course in our factory
8. Machine will be adjusted before it is delivered , operation disk/CD was included.
