The features:

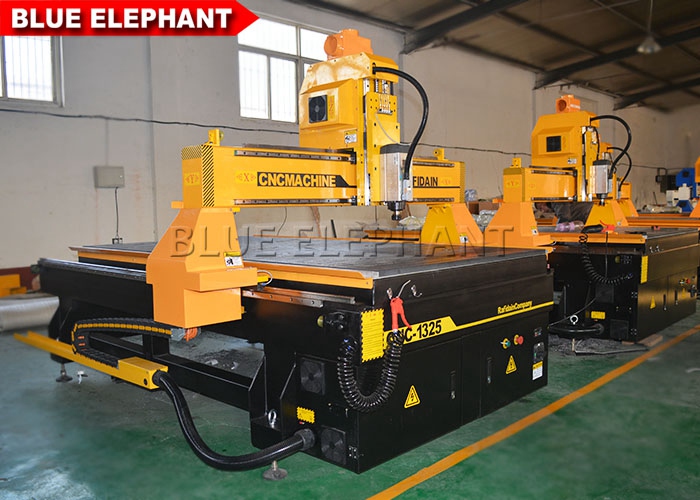

1 . ELE-1325 is an economic processing center, with a row of knife.
It is equipped with leading international components.
2 . The work table is international leading vacuum adsorption. It
is made from bakelite with high-strength, vacuum adsorption.
It can adsorb different size materials.
3 . Optional wheels help move the machine,more convenient. Optional
air gun help clean the worktable.
4 . With DSP control system, It can support offline operation.
5 . HIWIN/PMI linear rail from Taiwan for 3 axes, more stable and
precise,low noise,and its lifetime is 10 times longer than common
rail way.
6 . Standard configured with Italy HSD air cooling spindle, high
power and efficient. Very famous brand,has after-sale service all
over the world.
Matched with Taiwan DELTA inverter.
7 . Helical rack gear transmission,which can ensure faster
speed,higher efficiency,stronger power,longer lifetime, and it
makes the machine more stable.
8 . Standard configured with stepper motor FL118 and YAKO 2811 big
driver,very powerful. For option,we can change to Japan YASKAWA
servo
or Taiwan DELTA servo motors and drivers.
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x200mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum&T-slot Table |
| 6 | Frame | Welded Structure,heavy duty T-structure |
| 7 | X, Y Structure | Helical Rack gear,
Taiwan Hiwin/PMI Rail Linear Bearings |
| 8 | Z Structure | Taiwan TBI Ball Screw
Taiwan Hiwin/PMI Rail Linear Bearings |
| 9 | Max. Power Consumption | 2.0KW |
| 10 | Max. Rapid Travel Rate | 45000mm/min |
| 11 | Max. Working Speed | 30000mm/min |
| 12 | Spindle Power | 3KW HSD air cooling spindle(optional) |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | Delta servo motor (optional) |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 16 | Command Language | G Code |
| 17 | Operating System | DSP (Options: Ncstudio /Mach3 Software) |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 128M(U Disk) |
| 20 | Collet | ER25 |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
The applications:
1 . WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors,
interior doors, sofa legs, headboards and so on.
2 . Advertising Industry: advertising identification, sigh making, Acrylic engraving and
cutting, crystal word making, blaster molding,
and other advertising materials derivatives making.
3 . Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as
well as artificial marble, sand, plastic sheeting, PVC pipe,
wooden planks and other non-metallic mold.
4 . Relief Sculpture and 3D Engraving
5 .Cylindrical object
Our Service
1, Within 7 days since your local customs clearance: if the cnc
router’s any parts has any problems,
we will change it free.
2, Exceed 7 days since your local customs clearance but within
warranty period: if the cnc router parts
have any problems, we can change the old machine parts to new ones
free, but you should pay all
the shipping cost.
3, Exceed warranty period: if the cnc router parts have any
problems, we can offer new machine parts
with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if
you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8. Machine will be adjusted before it is delivered , operation
disk/CD was included.
Company Information
Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province .
We have always been developing to the research and manufacturer of
CNC router machine and laser
cutting engraving machine .
We have our R & D department , Quality control department , and
after sale &service department .
Our products are widely used in Woodworking ,Advertising , Model
,Electric , CAD/CAM Industry model ,
Clothing , Package Printing , Marking , Laser sealing and so on .
We had got CE and FDA certification always offer best quality
machine .
Our Philosophy : To Be First Brand -- CNC Manufacturer & wholesaler
Platform !
Just looking forward to service every customer, like you .
