high precision china cnc router 1325 price automatic wire cutting
and stripping machine
Product Features
1 , 2 sets of 2.2kw water cooling spindle,0-24000RPM (top brand in China), big strength, long life, and low
noise.
2 , Popular DSP controller, it’s with USB interface, no need connecting to PC,both easy
operation and convenient.

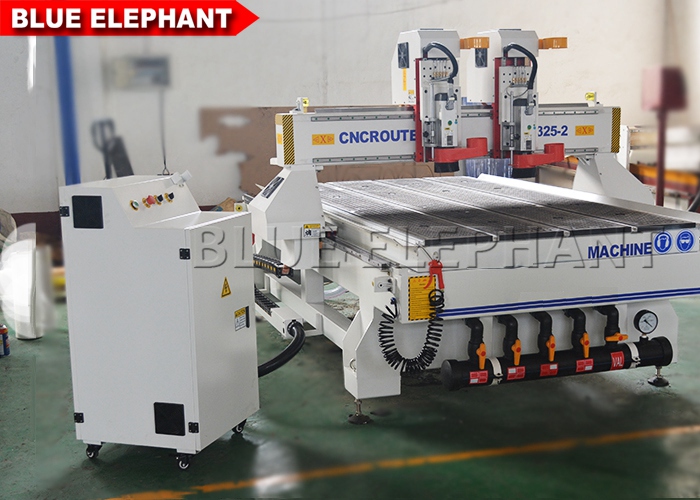

3 , Double separate heads, much bigger strength than one head, it’s suitable for wood doors,
windows, or other wood furniture with symmetrical patterns.
4 , HIWIN linear guide, imported from Taiwan. It’s high precision, long life and top pressure-tolerant performance.
Technical Parameter and Machine Parts
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x160mm(can be customized) |
| 2 | Table Size | 1480×3050mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | T-slot working table |
| 6 | Frame | Welded Structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Linear guide from Taiwan |
| 8 | Z Structure | Taiwan linear guide and Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 3.2Kw |
| 10 | Max. Rapid Travel Rate | 33000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 3 KW water cooling spindle |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | Stepper System |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 16 | Command Language | G Code |
| 17 | Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 128M(U Disk) |
| 20 | Collet | ER25 |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
Applied Industries
1 . WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors, interior doors, sofa
legs, headboards and so on.
2 . Advertising industry: advertising identification, sigh making, Acrylic engraving and
cutting, crystal word making, blaster molding, and other
advertising materials derivatives making.
3 . Die industry: A sculpture of copper, aluminum, iron and other metal mold s, as
well as artificial marble, sand, plastic sheeting, PVC pipe, wooden
planks and other non-metallic mold.
4 . Relief sculpture and 3D engraving
5 . Cylindrical object
After-Sales Service
1 , Within 7 days since your local customs clearance: if the cnc machine’s any parts
has any problems, we will change it free.
2 , Exceed 7 days since your local customs clearance but within warranty period: if
the cnc machine parts have anyproblems, we can change the old
machine parts to new ones free, but you should pay all the shipping
cost.
3 , Exceed warranty period: if the cnc machine parts have any problems, we can offer new
machine parts with cost price and you also should pay all the
shipping cost.
4 , We offer 24 hours technical support by call, email
5 , Our technician can give you remote guide online(Skype or MSN) if you have any question
6 , We can record videos of operating the laser machine
7 , Free training course in our factory
8 . Machine will be adjusted before it is delivered , operation disk/CD was included.
