Double Separate Heads Computerised Wood Carving Machine , Precision Stamp Engraving Machine

    Buy cheap Double Separate Heads Computerised Wood Carving Machine , Precision Stamp Engraving Machine from wholesalers

    Buy cheap Double Separate Heads Computerised Wood Carving Machine , Precision Stamp Engraving Machine from wholesalers
    • Buy cheap Double Separate Heads Computerised Wood Carving Machine , Precision Stamp Engraving Machine from wholesalers

    Double Separate Heads Computerised Wood Carving Machine , Precision Stamp Engraving Machine

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1325
    Certification : CE, ISO9001,SGS,CIQ
    Price : 3999-12999$
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200sets per Month
    Delivery Time : 15-20working days
    • Product Details
    • Company Profile

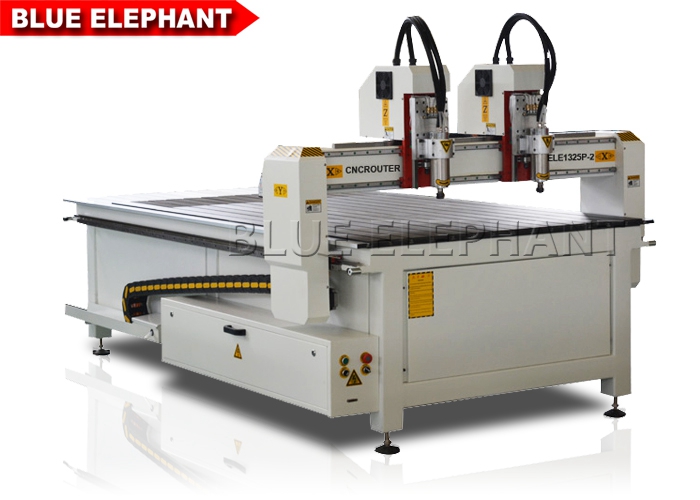

    Double Separate Heads Computerised Wood Carving Machine , Precision Stamp Engraving Machine

    2.2kw water cooling spindle , ELE - 1325 multi - heads cnc woodworking machine with Double separate heads


    The specification of the 4 axis cnc wood engraving machine:


    NO.DescriptionParameter
    1X,Y,Z Working Area1300x2500x160mm
    2X,Y,Z Traveling Positioning Accuracy±0.03/300mm
    3X,Y,Z Repositioning Accuracy±0.03mm
    4Table SurfaceT-slot Table
    5FrameWelded Structure
    6X, Y StructureRack and Pinion Drive, Taiwan TBI Rail Linear Bearings
    7Z StructureTaiwan TBI Rail Linear Bearings and Ball Screw
    8Max. Power Consumption(Without Spindle) 2. kw~2.2Kw
    9Max. Rapid Travel Rate33000mm/min
    10Max. Working Speed25000mm/min
    11Spindle Power2.2KW water cooling spindle for both heads
    12Spindle Speed0-24000RPM
    13Drive MotorsStepper System
    14Working VoltageAC220V/50/60Hz,3PH (Option: 380V)
    15Command LanguageG Code
    16Operating SystemDSP control system(options: NCstudio/Mach3 PC Software)
    17ColletER20
    18X,Y Resolution<0.01mm
    19Software CompatibilityType3/UcancameV9 Software
    20Running Environment Temperature0 - 45 Centigrade

    The features of the 4 axis cnc wood engraving machine:


    1) , 2.2kw water cooling spindle(top brand in China), big strength, long life, and low noise.


    2) , Popular DSP controller, it’s with USB interface, no need connecting to PC,both easy operation and convenient.


    3) , Double separate heads, much bigger strength than one head, it’s suitable for wood doors, windows, or other wood

    furniture with symmetrical patterns.


    4) , Taiwan TBI linear guide, imported from Taiwan. It’s high precision, long life and top pressure-tolerant performance.


    The applications of the 4 axis cnc wood engraving machine:


    Strong functions, easy operation, durable, reliable performance, high efficiency, applicable to batch process any wooden products,

    antique furniture, crafts gifts, relief processing.


    1) . WoodFurniture Industry:Wave Plate, fine pattern, antique furniture, wooden door, screen,MDF, craft sash, composite gates,

    cupboard doors, interior doors, sofa legs, headboards and so on.


    2) . Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding,

    and other advertising materials derivatives making.


    3) . die industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe,

    wooden planks and other non-metallic mold.


    4) . relief sculpture and 3D engraving.


    Our Service


    1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems,

    we will change it free.

    2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts

    have any problems, we can change the old machine parts to new ones free, but you should pay all

    the shipping cost.

    3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts

    with cost price and you also should pay all the shipping cost.

    4, We offer 24 hours technical support by call, and email.

    5, Our technician can give you remote guide online(Skype or MSN) if you have any question.

    6, We can record videos of operating the laser machine.

    7, Free training course in our factory.

    8. Machine will be adjusted before it is delivered , operation disk/CD was included.
