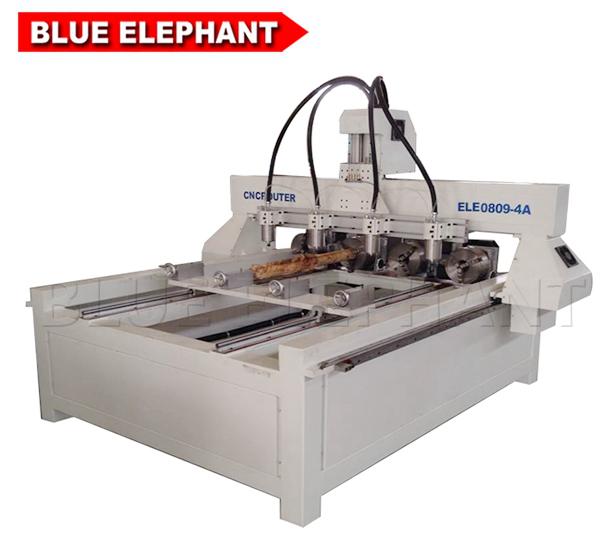

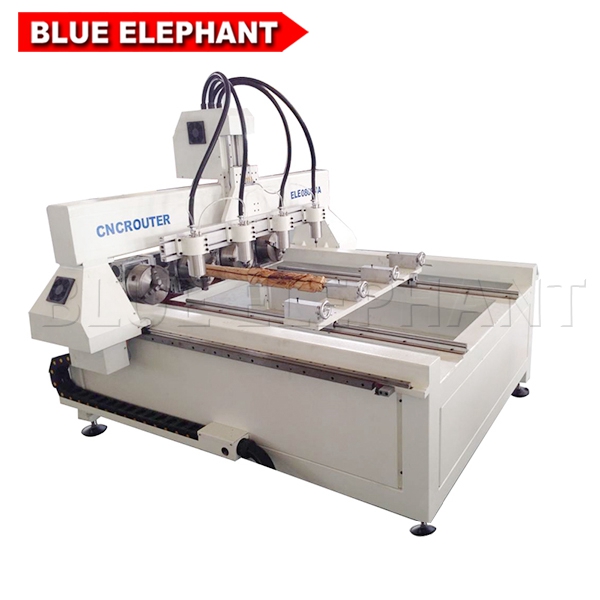

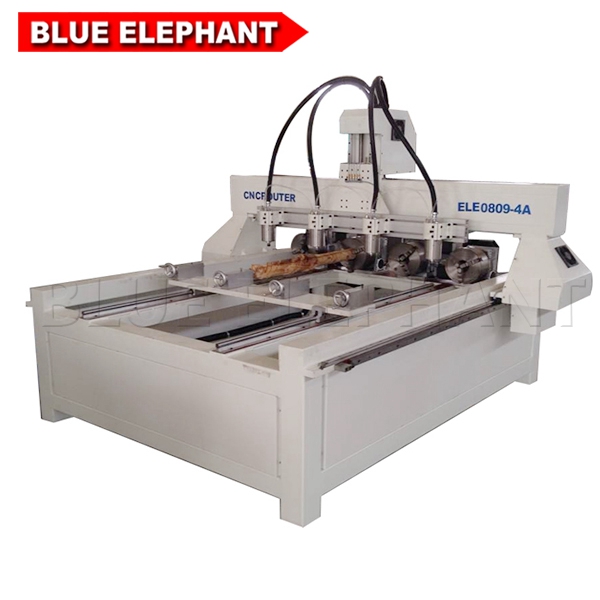

ELE 0809 multi head cnc woodworking router machine with YAKO driver
with CE,ISO9001 for woodworking
Features of 0809 multi head cnc woodworking router:
1) High Steel Mechanical heavier bed, vibration aging treatment, to
ensure stable and reliable bed;
2) Together with Taiwan TBI precision automatic anti-backlash ball
screw andTaiwan HIWIN square
linear guide rail, high-speed stepper motor driver,ensure that the
processing size accurate precision;
3) CNC Introduction and friendly user interface, support for
Chinese conversion, size input.
Specifications of 0809 multi head cnc woodworking router:
| NO. | Model | DX-0809 |
| 1 | Rotary diameter | 120mm |
| 2 | Rotary length | 900mm |
| 3 | Z axis | 220mm |
| 4 | Max speed | 8m-10mm/min |
| 6 | Precision | ±0.005mm/300mm |
| 7 | Interface | USB |
| 8 | Command | G code*.u00*.mmg* |
| 9 | Surroundings for software | Windows98/2000/XP |
| 10 | Power(not include the spindle) | 500W |
| 11 | Power | 220v,1phase, 50/60HZ |
| 12 | Spindle Power | 2.2kw |
| 13 | Spindle speed | 0-18000 rpm/min |
| 14 | motor | Stepper |
| Applications of 0809 multi head cnc woodworking router: |
Mainly used for processing Roman column, stair handrails, chair
legs, etc.symmetric cylindrical products. Can be processed cylinder, cone, surface, a complicated shape such
as spherical rotary body semi-finished wood products or wood. Especially suitable for mass production of
small and medium wood enterprises, they can always be set flexibly shape, rapidly changing processing
styles. |
FAQ:
A This is the first time I use this kind of machine, is it easy to
operate?
There are english manual or guide video that show how to use
machine.
If there is still have any question, please contact us by e-mail /
skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have
any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
1 set machine, mixed order is also welcomed.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment
methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma
invoice.
5. We prepare for your order in terms of the proforma invoice after
confirming your full payment. And 100% quality check before
shipping.
6. Send your order by air or by sea.
