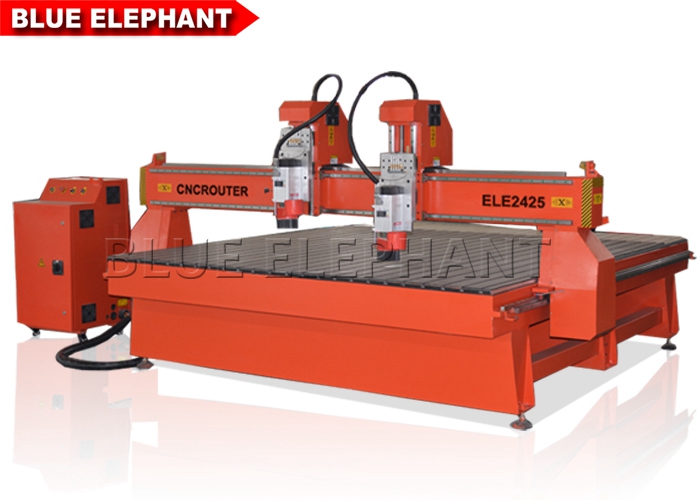

YASKAWA servo motor and driver imported from Japan , high precision
, ELE 2425 two heads multi spindle machine
Application:
Strong functions, easy operation, durable, reliable performance,
high efficiency, applicable to batch process any wooden products,
antique furniture, crafts gifts, relief processing.
Features:
1 , T-slot working table. Mechanical fixing small processing
materials
2 , Double separate heads, each spindle is 3kw air cooling
3 , Dust collection system, it can keep a clean, less-dust working
surrounding which is helpful to your healthy; also, it can reduce
the surface dust of linear guide, ball screw and gear transmission,
reducing the maintaining cost.
4 , Free Processing One single or double spindle motors can be
selected to process the same file simultaneously, great efficiency;
5 , Continuous Working Ability Imported linear guide, industrial
design, ensure machine of long duration of working,more durable.
Parameter:
| Model | ELE-2425 |
| X,Y,Z travel( mm) | 2400x2500 x 200 |
| Type | Separate double heads |
| Spindle power | 3kw air cooling spindle (for optional) |
| Spindle rotation speed | 0-18000RPM |
| Spindle number | 2 pcs,4 pcs, 6pcs, 8pcs ( for optional) |
| Table | vacuum & T slot table |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| X, Y Structure | Gear and rack transmission, Taiwan HIWIN Linear Rail |
| Z Structure | Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail |
| Controlling system | DSP (NCSTUDIO for optional) |
| Working Voltage | AC380V,3PH,50/60Hz (Option: 220V) |
Our Service
1, Within 7 days since your local customs clearance: if the cnc
router’s any parts has any problems,
we will change it free.
2, Exceed 7 days since your local customs clearance but within
warranty period: if the cnc router parts
have any problems, we can change the old machine parts to new ones
free, but you should pay all
the shipping cost.
3, Exceed warranty period: if the cnc router parts have any
problems, we can offer new machine parts
with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if
you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8. Machine will be adjusted before it is delivered , operation
disk/CD was included.
Company Information
Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province .
We have always been developing to the research and manufacturer of
CNC router machine and laser
cutting engraving machine .
We have our R & D department , Quality control department , and
after sale &service department .
Our products are widely used in Woodworking ,Advertising , Model
,Electric , CAD/CAM Industry model ,
Clothing , Package Printing , Marking , Laser sealing and so on .
We had got CE and FDA certification always offer best quality
machine .
Our Philosophy : To Be First Brand -- CNC Manufacturer & wholesaler
Platform !
Just looking forward to service every customer, like you .
