    Taiwan TBI Ball Screw Entry Level ATC CNC Router With Italy HSD Air Cooling Spindle

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1325
    Certification : CE, ISO9001,SGS,CIQ
    Price : 15999-25999$
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200sets per Month
    Delivery Time : 15-20working days
    • Product Details
    • Company Profile

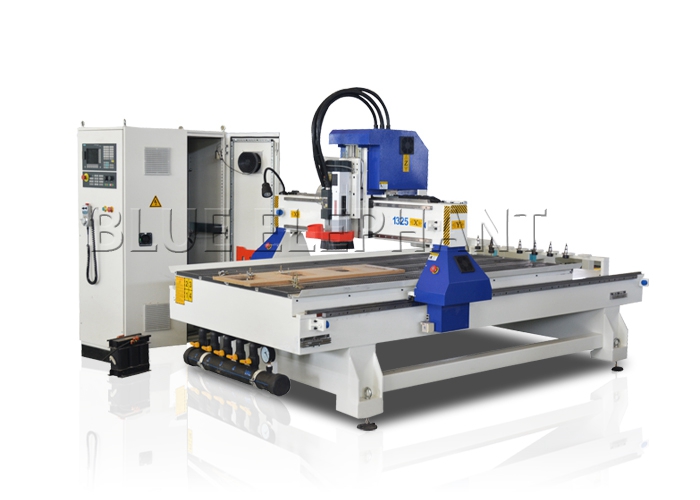

    Taiwan TBI Ball Screw Entry Level ATC CNC Router With Italy HSD Air Cooling Spindle

    Taiwan TBI Ball screw , Germany SIEMENS control system , ELE - 1325 atc machine with Italy HSD air cooling spindle


    Why choose our product?


    1 . The working speed is fast:30m/min.

    2 . Fast tool change : the changing tool bits just need 8 second

    3 . high precision: the precision is ±0.01/300mm

    4 . Safe operation: Japanese Omron limit switch

    5 . Configuring High:Taiwan TBI Ball screw, Germany SIEMENS control system, Italy 9kw HSD ATC air cooling spindle, 11KW DELTA inverter made in Taiwan, Taiwan HIWIN Linear guide


    After-sale service:


    1 , Within 7 days since your local customs clearance: if the cnc machine’s

    any parts has any problems, we will change it free.
    2 , Exceed 7 days since your local customs clearance but within warranty

    period: if the cnc machine parts have any problems, we can change the old

    machine parts to new ones free, but you should pay all the shipping cost.
    3 , Exceed warranty period: if the cnc machine parts have any problems, we

    can offer new machine parts with cost price and you also should pay all the shipping cost.
    4 , We offer 24 hours technical support by call, email
    5 , Our technician can give you remote guide online(Skype or MSN) if you have any question
    6 , We can record videos of operating the laser machine
    7, Free training course in our factory
    8. Machine will be adjusted before it is delivered , operation disk/CD was included.


    Applications:


    1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
    2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
    3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
    4. Relief sculpture and 3D engraving
    5. Cylindrical object


    Parameters:


    ModelELE -1325
    X,Y,Z travel( mm)1300*2500*200mm
    Spindle powerItaly 9kw air cooling spindle
    Spindle rotation speed0-24000RPM
    Tool colletISO30
    Max. Rapid Travel Rate60000mm/min
    Max. Working Speed25000mm/min
    X,Y,Z Traveling Positioning Accuracy±0.03/300mm
    X,Y,Z Repositioning Accuracy±0.03mm
    Table SurfaceVacuum and T-slot Combined
    X, Y StructureGear and rack transmission, Taiwan HIWIN Linear Rail
    Z StructureTaiwan TBI Ball Screw, Taiwan HIWIN Linear Rail
    Drive MotorsJapan YASKAWA servo (Taiwan DELTA servo for optional)
    Controlling systemSIEMENS(SYNTEC,LNC for optional)
    Working VoltageAC380V,3PH,50/60Hz (Option: 220V)
    Tool change typeCarousel auto tool change systemLinear auto tool change system
    Tools number

    8 Positions ATC
