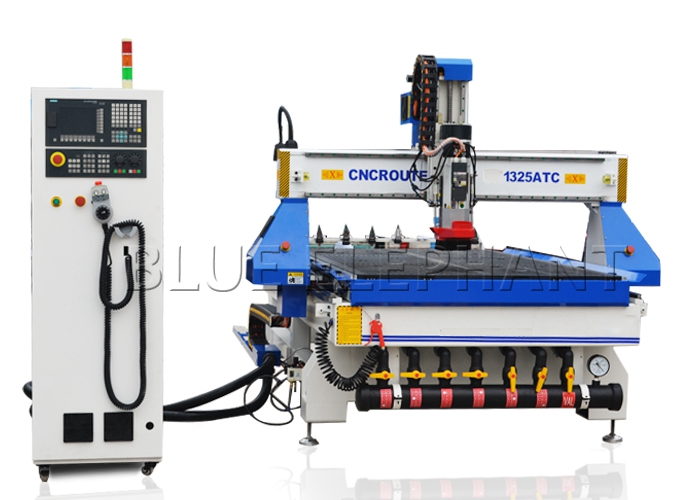

    T - Type Gantry Rotary Axis Cnc Router With Atc , Cnc Stone Engraving Machine Low Vibrations

    Stone crafts, make relief, scrupture, big statue, ELE 1325 ATC cnc router machine, cnc wood cutting machine


    Features


    a . High precision, low vibrations, stable running.

    b . Imported Taiwan HIWIN linear square guide, high precision.

    c . High performance 9kw Italy HSD ATC air cooling spindle, more powerful, low noise.

    d . Y axis adopt double motors, highly increased the travelling speed.

    e . Advanced Germany SIEMENS control system , easy to operate.

    f . T-type gantry, making the machine bed more stable, and reducing the shaking feeling

    when the gantry moving.


    Parameters



    1Model

    ELE-1325ATC/ELE-1530ATC/ELE-1625ATC/

    ELE-1836ATC/ELE-2030ATC

    2X,Y Working Area

    1300*2500mm/1500*3000mm/1600*2500mm/

    1800*3600mm/2000*3000mm

    3X,Y,Z Traveling Positioning Accuracy±0.03/300mm
    4X,Y,Z Repositioning Accuracy±0.03mm
    5Table Surface

    T-slot & Vacuum working table

    (Option: T-slot Table)

    6Frame

    Thicken steel Square Tube Heavy structure

    8mm thicken steel gantry with T type

    7X, Y Structure

    Gear and rack transmission,

    Taiwan HIWIN Linear Rail

    8Z Structure

    Taiwan TBI Ball Screw,

    Taiwan HIWIN Linear Rail

    9Max. Power Consumption9Kw
    10Max. Rapid Travel Rate60000mm/min
    11Max. Working Speed25000mm/min
    12Spindle Power9KW HSD ATC spindle from Italy
    13Spindle Speed0-24000RPM
    14Drive Motors

    Germany SIEMENS Servo Motor Driver

    (optional:Japan YASKAWA Servo Motor Driver)

    15Working VoltageAC380V/50/60Hz,3PH (Option: 220V)
    16Command LanguageG Code
    17Operating System

    Germany SIEMENS control system

    (Optional:SYNTEC control system from Taiwan)

    18Computer InterfaceUSB interface
    20ColletISO30
    21Inverter11kw Taiwan DELTA inverter
    22Software Compatibility

    Type 3 /Artcam /Ucancam

    Applications


    1 . stone crafts, make relief, scrupture, big statue, pottery and porcelain decration etc.


    2 . Advertising industry: Advertising signs, acrylic brands, calligraphy, 3D characters,

    garden or wall decoration, logo, acrylic cutting, billboard, characters cutting, plate,

    LED/neon channel, literal-hole

    cut, Lightbox mold, stamp, mould.


    3 . die industry: Sculpture of copper, aluminum, iron and other metal molds, as well as

    artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.


    After-sale Service


    1 , Within 7 days since your local customs clearance: if the cnc machine’s any parts has

    any problems, we will change it free.


    2 , Exceed 7 days since your local customs clearance but within warranty period: if the

    cnc machine parts have any problems, we can change the old machine parts to new ones

    free, but you should pay all the shipping cost.


    3 , Exceed warranty period: if the cnc machine parts have any problems, we can offer

    new machine parts with cost price and you also should pay all the shipping cost.

    We offer 24 hours technical support by call, email


    5 , Our technician can give you remote guide online(Skype or MSN) if you have any question


    6 . We can record videos of operating the cnc machine


    7 , Free training course in our factory


    8 . Machine will be adjusted before it is delivered , operation disk/CD was included.

    Details


    9kw Italy HSD ATC spindle + 11kw Taiwan DELTA inverter = Perfect Performance


    Germany SIEMENS Servo Motor Driver + Germany SIEMENS control system =Perfect Performance


    IF YOU NEED rotary device,you can choose Taiwan SYNTEC CONTROLLER.
