HSD spindle 4.5kw( Italy ATC spindle for option) , New Arrival 1530
CNC router 4 axis wood carving machine top quality
The applications and samples of 4 axis cnc router:
1) . WoodFurniture Industry: Wave Plate, fine pattern, antique
furniture, wooden door,
screen, craft sash, composite gates, cupboard doors, interior
doors, sofa legs, headboards
and so on.
2). Advertising industry: advertising identification, sigh making,
Acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising
materials derivatives making.
3). Die industry: A sculpture of copper, aluminum, iron and other
metal molds, as well as
artificial marble, sand, plastic sheeting, PVC pipe, wooden planks
and other non-metallic mold.
4). Relief sculpture and 3D engraving
5). Cylindrical object
The specifications of 4 axis cnc router:
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1500x3000x400mm*±100° |
| 2 | Table Size | 1500×3000mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| 4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
| 5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
| 6 | Frame | Big Steel Tube Structure |
| 7 | X, Y Structure | Helical rack gear , HIWIN Linear guide |
| 8 | Z Structure | Imported Ball Screw , HIWIN Linear guide |
| 9 | Max. Power Consumption | (Without Spindle) 4.2Kw |
| 10 | Max. Rapid Travel Rate | 40000mm/min |
| 11 | Max. Working Speed | 30000mm/min |
| 12 | Spindle Power | HSD spindle 4.5kw( Italy ATC spindle for option) |
| 13 | Spindle Speed | 0-18000RPM |
| 14 | Drive Motors | Japan YASKAWA servo 1KW |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| 16 | Command Language | G Code |
| 17 | Operating System | SYNTEC Control System |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 512M |
| 20 | Collet | ER32 |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | UG , Power mill |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
The features of the 4 axis cnc router:
1) Welded structure by thick profiled steel.
2) Assembled with precise parts.
3) Automatic lifting device for vacuum suckers allows the easy
operation for the job on the
side of working pieces. Vacuum working table is with double cavities and
bakelite material
with high absorption power.
4) Imported Syntec high performance control system, separated
keyboard control,
color LCD display.
5) With Italian combination drills, the machine can finish various
processes one time
including drilling, edge cutting, engraving, slotting, and lock hole making and
expanding for the wooden door panels with complicated processing requirement.
Our Services
Guarantee:
12 months for the whole machine. Within 12 months under normal use
and maintenance, if something
is wrong with machine, you will get spare part for free.
Out of 12 months, you will get spare part at cost price. You will
also get technical support and service
all the lifetime.
Technical support:
1 , Technical support by phone, email or MSN/Skype around the clock
2 , Friendly English version manual and operation video CD disk
3 , Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in
our factory.
You will also get free suggestion and consultation, technical
support and service by email/fax/tel and lifetime
technical support.

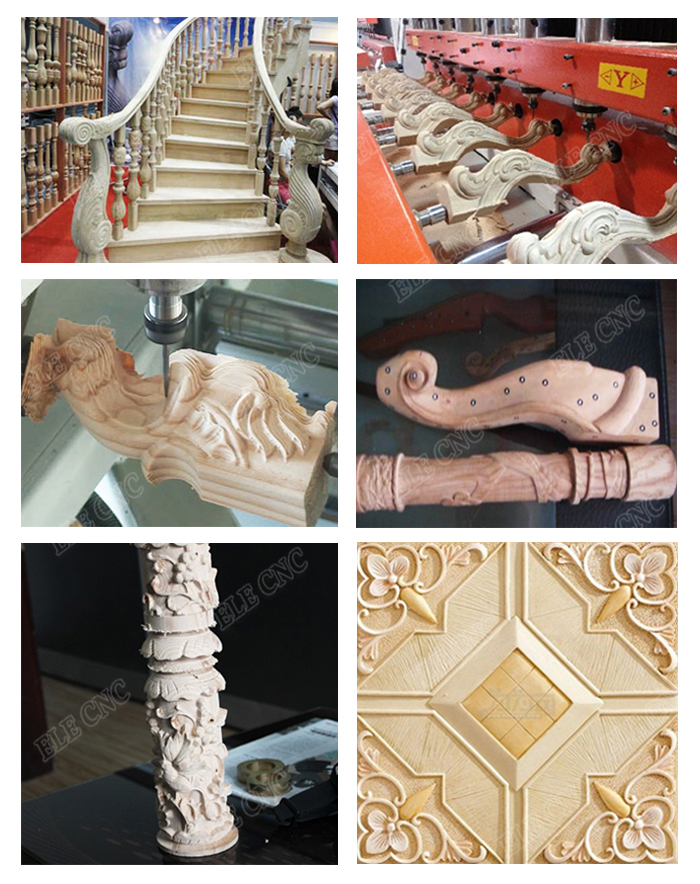

Samples:
