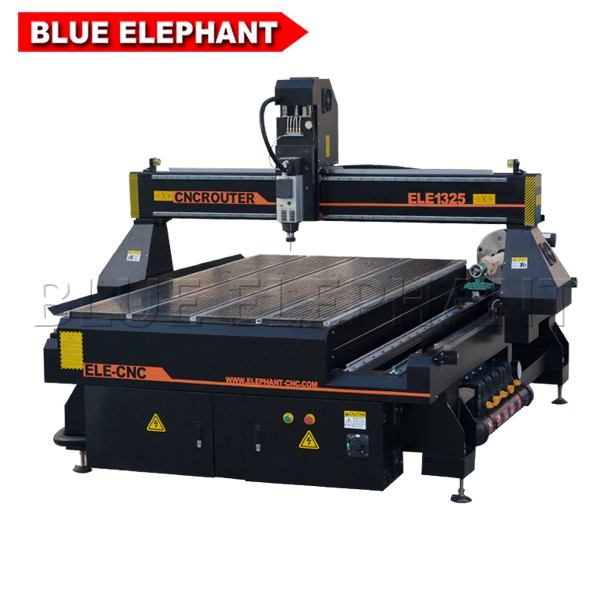

ELE 1325 Wood furniture making 4x8 cnc router machine , wood cutter
cnc router with rotary axis
Features of 4x8 cnc router machine:
1). 4.5kw HSD air cooling spindle from Italy
2). 5.5kw DELTA inverter from Taiwan
3). Original Mach3 4 AXIS control system
4). Japan YASKAWA servo motor
5). vacuum pump
6). Vacuum and T-slot working table
7) with rotary device
Parameters of 4x8 cnc router machine:
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x400mm |
| 2 | Table Size | 1480×3050mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum and T-slot working table |
| 6 | Frame | Welded Structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 3.2Kw |
| 10 | Max. Rapid Travel Rate | 33000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 4.5kw Italy HSD air cooling spindle |
| 13 | Spindle Speed | 0-18000RPM |
| 14 | Drive Motors | Japan YASKAWA servo motor |
| 15 | Working Voltage | 380v, 3 phase, 50/60HZ (Option: AC220V/50/60Hz,3PH) |
| 16 | Command Language | G Code |
| 17 | Operating System | Mach3 4 axis control System |
| 18 | Computer Interface | USB |
| 19 | Rotary device | 300mm diameter*2200mm length |
| 20 | Collet | ER25 |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
Applicantion of 4x8 cnc router machine:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique
furniture, wooden door, screen, craft sash,composite gates,
cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry: advertising identification, sigh making,
Acrylic engraving and cutting,crystal word making, blaster molding,
and other advertising materials derivatives making.
3. Die industry: A sculpture of copper, aluminum, iron and other
metal molds, as well as artificial marble, sand, plastic
sheeting,PVC pipe, wooden planks and other non-metallic mold.
4. relief sculpture and 3D engraving
5. Cylindrical object
FAQ:
Q: This is the first time I use this kind of machine, is it easy to
operate?
Re: There are english manual or guide video that show how to use
machine.
If there is still have any question, please contact us by e-mail /
skype/ phone /trademanager online service at any time.
Q: If machine have any problem after I receive it, how can I do ?
Re:Free parts send to you in machine warranty period if machine
have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
Q: MOQ
Re: 1 set machine, mixed order is also welcomed.
Q: How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment
methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma
invoice.
5. We prepare for your order in terms of the proforma invoice after
confirming your full payment. And 100% quality check before
shipping.
6. Send your order by air or by sea.
