Plasma Shape Cutter Cnc Metal Cutting Machine 0 - 50000mm / Min Moving Speed

    Buy cheap Plasma Shape Cutter Cnc Metal Cutting Machine 0 - 50000mm / Min Moving Speed from wholesalers

    Buy cheap Plasma Shape Cutter Cnc Metal Cutting Machine 0 - 50000mm / Min Moving Speed from wholesalers
    • Buy cheap Plasma Shape Cutter Cnc Metal Cutting Machine 0 - 50000mm / Min Moving Speed from wholesalers

    Plasma Shape Cutter Cnc Metal Cutting Machine 0 - 50000mm / Min Moving Speed

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1325
    Certification : CE, ISO9001,SGS,CIQ
    Price : 3999-12999$
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200sets per Month
    Delivery Time : 10-15working days
    • Product Details
    • Company Profile

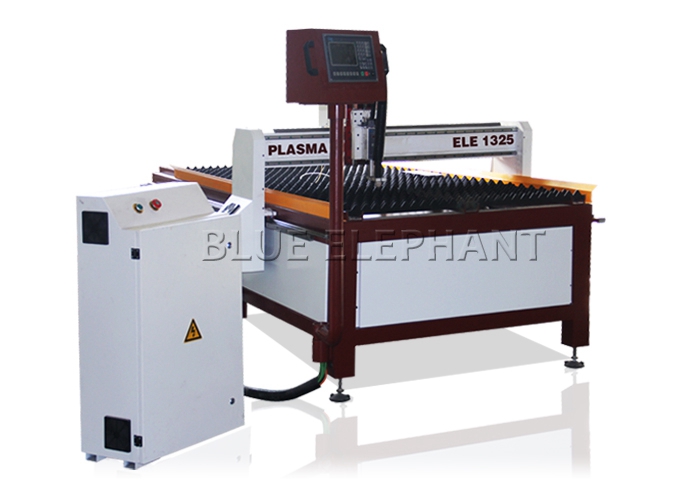

    Plasma Shape Cutter Cnc Metal Cutting Machine 0 - 50000mm / Min Moving Speed

    Taiwan HIWIN Linear guide , YAKO 2608 / Leadshine860H driver , 1530 cnc plasma cutter for steel with cheap price


    Technical Parameters:


    Descriptionparameter
    working area1500*3000mm
    TransmissionX, Y axis: High precision Rack Gears; Z axis: imported Ball Screw
    X, Y, Z RailTaiwan HIWIN Linear guide
    Cutting Thickness3mm -25mm stainless steel
    Cutting Speed0-8000mm/min
    Moving Speed0-50000mm/min
    Plasma GeneratorLGK-125A ( 200A for option)
    MotorStepper motor
    DriverYAKO 2608/Leadshine860H driver
    Control systemSTART with THC function
    Working voltage3 phase 380V 50HZ/60HZ ( 220v for option)
    SoftwareARTCAM, Type 3, Ucan cam
    File transferUSB interface
    Arc

    Untouched arc striking


    After-sale service:

    1 , Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.

    2 , Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
    3 , Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
    4 , We offer 24 hours technical support by call, email
    5 , Our technician can give you remote guide online(Skype or MSN) if you have any question
    6 , We can record videos of operating the laser machine
    7 , Free training course in our factory
    8 . Machine will be adjusted before it is delivered , operation disk/CD was included.
