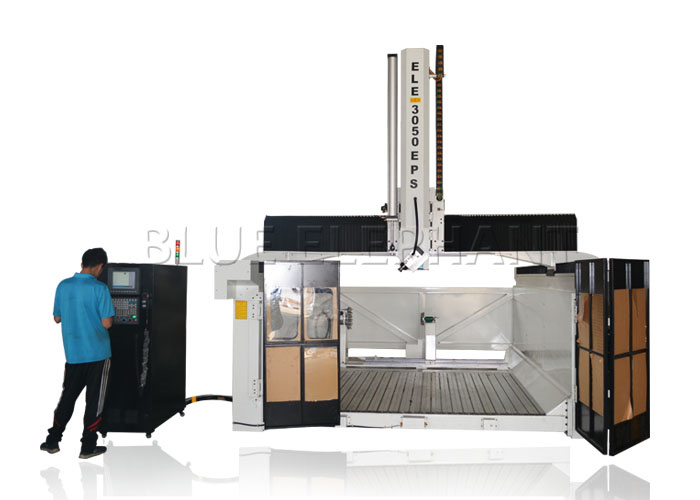

3050 Big size 4 axis router cnc 3d molding machine , cnc machine
for mold making
Advantage:
1. Self-lubricating, life-long maintenance-free Taiwan guide rail.
2. Italian high-speed spindle, with top speed of 24000rpm,
guaranteering maximum processing efficiency and productivity.
3. Whole working table cast by resin sand. The annealing and other
heat treatment methods ensure that the whole structure is tested to
the limit for sturdiness and reliability.
4. Taiwan controller reads the codes in an efficient manner. Online
simulation and monitoring function are available. Processing
efficiency and safety are guaranteed.
Features:
1. Effective working area :2860x3500x1450mm
2, Italy HSD brand air cooling spindle: 4.5kw
3, 4th axis can move ±100°
4.Taiwan DELTA inverter: 5.5kw
5, Japan YASKAWA servo driver 1.5KW
6, Taiwan SYNTEC control system 4 axis 21MA model
7, Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z
travel
Double Taiwan HIWIN #35 Linear guide for Y axis one side,total 4pcs
#35 linear guide for Y axis.
X,Z axis Taiwan HIWIN #45 linear guide .
8, Taiwan TBI ball screw with high precision
9. Dust hood for axis,dust collect hood and pipe for dust collector
10. 2000mm floor with aluminum &PVC ,1300mm floor steel plate
under angle
11. Rotary device:diameter 300mm, length 2000mm
12. New type dust collection with two bags
13. Heavy duty gantry and structure
14. Japan Shimpo reducer
Parameters:
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 2860x3500x1450 mm*±100° |
| 2 | Effective working area | 2860x3500x1450 mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| 4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
| 5 | Table Surface | T-slot Table |
| 6 | Frame | Big Steel Tube Structure |
| 7 | Y Structure | Helical rack gear , 4pcs HIWIN #35 Linear guide |
| 8 | X,Z Structure | HIWIN #45 Linear guide |
| 9 | Max. Power Consumption | (Without Spindle) 5Kw |
| 10 | Max. Rapid Travel Rate | 40000mm/min |
| 11 | Max. Working Speed | 30000mm/min |
| 12 | Spindle Power | HSD spindle 4.5kw |
| 13 | Spindle Speed | 0-18000RPM |
| 14 | Drive Motors | Japan 1.5KW YASKAWA servo |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| 16 | Command Language | G Code |
| 17 | Operating System | SYNTEC Control System 21MA |
| 18 | Rotary device | Diameter300mm, length 2000mm |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 512M |
| 20 | Collet | ER32 (20mm) |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | UG , Power mill |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | New type dust collection | 1.5KW with two bags (equal the old type 4Kw ) |
Main parts:
Applications:
Ideal for automobile mold industry, suitable for EPS foam, casting
wood mold, automobile interior decoration, engineering plastic and
other non-metal materials .
Sample show:
Packaging & Shipping
About the packing:
1 . Outside package:Standard export wooden cases
2 . Inner package:Strech film
About the shipping:
For the shipping,you can choose the sea shipping,air shipping,and
you also can choose the transmission of expressage: DHL/TNT/Fedex
and so on.You can choose the EXW/FOB/CIF/DDP/DDU.It depends on what
you would like better.
