Hobby Cnc Plasma Cutter Cnc Sheet Cutting Machine For Aluminium / Stainless / Iron

    Buy cheap Hobby Cnc Plasma Cutter Cnc Sheet Cutting Machine For Aluminium / Stainless / Iron from wholesalers

    Buy cheap Hobby Cnc Plasma Cutter Cnc Sheet Cutting Machine For Aluminium / Stainless / Iron from wholesalers
    • Buy cheap Hobby Cnc Plasma Cutter Cnc Sheet Cutting Machine For Aluminium / Stainless / Iron from wholesalers

    Hobby Cnc Plasma Cutter Cnc Sheet Cutting Machine For Aluminium / Stainless / Iron

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1530
    Certification : CE, ISO9001,SGS,CIQ
    Price : 4999-12999
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200sets per Month
    Delivery Time : 15-20days
    • Product Details
    • Company Profile

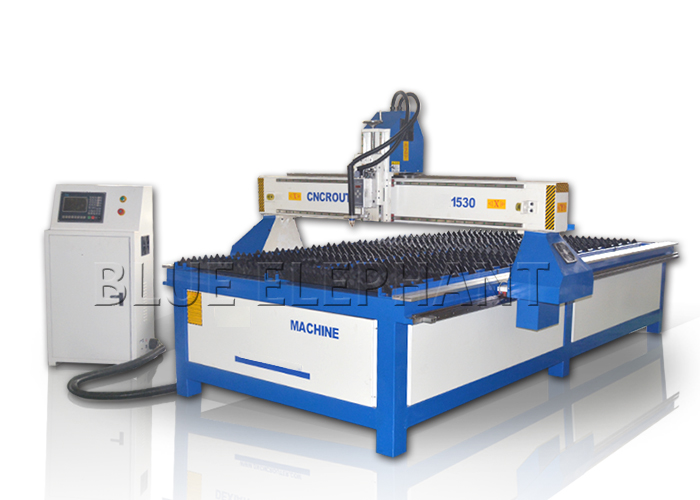

    Hobby Cnc Plasma Cutter Cnc Sheet Cutting Machine For Aluminium / Stainless / Iron

    Hobby cnc plasma cutter , portable plasma cutting machine , sheet metal cutting machine for alumium , stainless , iron


    Features of metal cutting machine:

    1. Both capable for panel and bottle plate of 3D lighting letters and groove letters, high precision.


    2. Matching with other ad equipment (forming machine, carving machine, etc.) to form assembly line of the manufacturing advertisement letters


    3. Cutting edge is tiny and tidy without any drop outs, so avoiding retiming.


    4. High cutting speed & precision,automatic ARC striking, stable performance, the success ratio of ARC striking can be over 99%.


    5. The whole structure is scientific, easy operating and durable. Support ARTCUT, ARTCAM, TYPE3, etc.

    Parameters of metal cutting machine


    NameSpecification
    Working Area(X*Y)1500*3000mm(1300*2500mm)can be customized
    Machine StructureWelded
    X Y Guide RailTaiwan HIWIN Square Rail
    X Y TransmissionImported Rack gears
    Drive ModeStepper Motor (Optional Servo )
    Control SystemDSP/START
    Max thickness0.5-22mm
    Plasma Generator100A Domestic LGK Power Generator
    Cutting Speed0-8000mm/min
    Working Voltage3-Phase 380V/2-phrase 220V
    G.W.1200KGS

    A : Main machine assembly including: rack, beam, moving parts, pipe parts, transverse slide line rack, vertical and transverse transmission parts and so on.


    B : Rail assembly including : 6 pairs of main rail and assistant rail and accessories, 2 meters per pair.


    C :Plamsa torch or flame torch


    D : Electric control assembly including : electric cabinet, longitudinal and transverse motors and accessories.


    E: Gas assembly including : general pipe for three way of gas supplyelectromagnetism valvepressure gaugetemper preventing equipment and so on.


    F: Height adjustment: Torch Height Controllor (can cut different height material ).

    Products sample about metal cutting machine:


    Application Materials: Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc


    Application Industry:Sheet metal, kitchenware, components, decorations industry
