    3D Mini Acrylic Fiber Laser Engraving Machine , Portable Metal Laser Printing Machine

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE200
    Certification : CE, ISO9001,SGS,CIQ
    Price : US $5,999 - 8,999 / Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    3D Mini Acrylic Fiber Laser Engraving Machine , Portable Metal Laser Printing Machine

    High precision 3D mini fibre laser engraving machine , portable Metal Laser Printing Machine for plastic , jewelry , fabric


    Features of fiber laser marking machine

    1. High speed with galvanometer.
    2. Small volume,light weight.
    3. Low power,consumption power is less than 500w.
    4. Completely air cooling,low power consumption.
    5. No influence of the severe enviroment and temperature change.If no power,battery and car cigarette lighter can be used for working.
    6. Greatly reduce the depreciation cost,satisfying customers' stable large quantities production.

    Parameters of fiber laser marking machine


    Product ModelELE 200 fiber laser marking machine
    Laser Tubemade in China(optional Germany IPG or Britain SPI)
    Laser Power10W/20W
    Laser Length1060mm
    Quality of Lase Beamm2<1.5
    Laser Repetition Frequency≤100 KHz
    Standard Marking Area110×110mm
    Optical Marking Area50*50mm,100*100mm,50*150mm
    Engraving Depth≤1.2mm
    Engraving Speed≤12000mm/s
    Minimum Line Width0.01mm
    Minimum Character0.05mm
    Resolution Ratio±0.001mm
    Gross Power≤500W
    Working Voltage200V/50Hz/10A

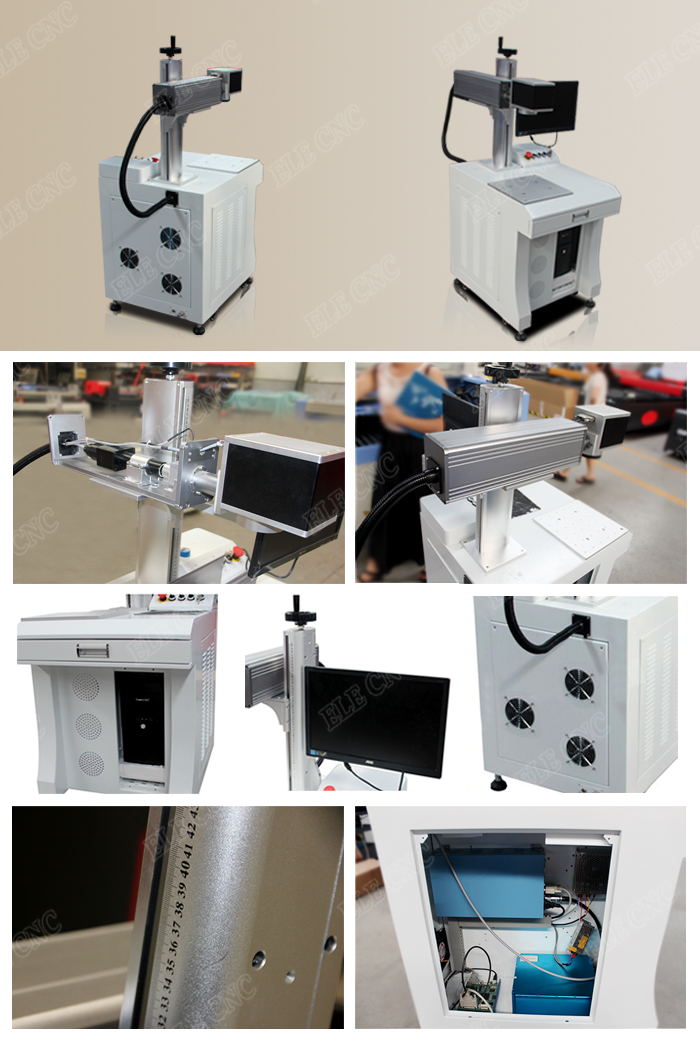

    Details of fiber laser marking machine



    Application of fiber laser marking machine

    Applicable Industry:

    gold & silver jewellery, sanitary ware, food packing, tobacco products, medicine packing, medical apparatus and instruments, watches & glassware, auto accessories, electronic hardware.

    Applicable Materials:

    gold & silver, stainless steel, ceram, plactic, glass, stone, leather, cloth, bamboo and so on.

    Applicaion Show:

    auto accessories marking, tobacco products marking, beer bottle marking,ring marking, electronic products marking.
