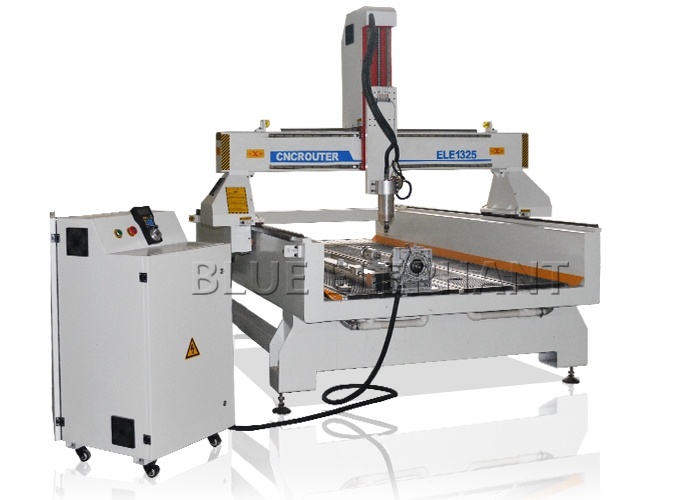

3kw air cooling spindle , Dust collection system , ELE - 1325 high
Z axis 4 axis rotary carving machine for wood furniture
Features:
Features for 4 axis cnc wood engraving machine
1 , T-slot working table. Mechanical fixing small processing
materials
2 , 3kw air cooling spindle(top brand in China), It’s big strength
and higher efficiency,
3 , Dust collection system, it can keep a clean, less-dust working
surrounding which is helpful to your healthy; also, it can reduce
the surface dust of linear guide, ball screw and gear transmission,
reducing the maintaining cost.
After-sale service:
for 4 axis cnc wood engraving machine
1 , Within 7 days since your local customs clearance: if the cnc
router’s any parts has any problems, we will change it free.
2 , Exceed 7 days since your local customs clearance but within
warranty period: if the cnc router parts have any problems, we can
change the old machine parts to new ones free, but you should pay
all the shipping cost.
3 , Exceed warranty period: if the cnc router parts have any
problems, we can offer new machine parts with cost price and you
also should pay all the shipping cost.
4 , We offer 24 hours technical support by call, email
5 , Our technician can give you remote guide online(Skype or MSN)
if you have any question
6 , We can record videos of operating the laser machine
7 , Free training course in our factory
8 . Machine will be adjusted before it is delivered , operation
disk/CD was included.
Technical paramters:
Parameter for 4 axis cnc wood engraving machine
| NO. | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x600mm |
| 2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 4 | Table Surface | T-slot & Vaccum working table |
| 5 | Frame | Welded Structure |
| 6 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 7 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 8 | Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
| 9 | Max. Rapid Travel Rate | 33000mm/min |
| 10 | Max. Working Speed | 25000mm/min |
| 11 | Spindle Power | 3KW air cooling spindle |
| 12 | Spindle Speed | 0-18000RPM |
| 13 | Drive Motors | Stepper System |
| 14 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 15 | Command Language | G Code |
| 16 | Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
| 17 | Computer Interface | USB |
| 18 | Flash Memory | 1GB(U Disk) |
| 19 | Collet | ER25 |
| 20 | X,Y Resolution | <0.01mm |
| 21 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
Advantages for 4 axis cnc wood engraving machine
| Machine parts | Advantages |
| 1300*2500*600mm work area | Standard size. |
| big and thick square tube heavy duty T structure, welded steel | More stable and stronger, even you use for many years, it won’t
change
shape. |
| 3kw water cooling spindle | Top brand in world, high quality, global warranty |
| 3.7kw Fuling inverter | The best brand in Asia |
| DSP control system | Support offline operation, do not have to connect to the computer |
Taiwan HIWIN or PMI 20mm square
linear guide way for X,Y,Z axis | Very famous brand, can improve high precision, smooth transmission,
fast speed, low noise, and it has 10 times longer life than common
rail way. |
Helical rack and gear 1.25M
transmission for X,Y axis | Bigger loading capacity, stronger biting force, makes sure the
machine is
stable, with long lifetime. |
| Taiwan TBI ball screw 2510 transmission for Z axis | Famous brand, high quality, can make sure very accurate precision. |
| Vacuum & T-slot combined worktable | Double use: Vacuum table can use big absorbing power to absorb big
material like wood board, very convenient; T-slot table can help
fix small materials by clamps. |
Stepper motor FL118 with YAKO
2608 driver | 4 sets in total, double motors for Y axis, very powerful in stepper
system,
also very popular among customers. |
| Control cabinet is under the table | Saving space and it has 2 doors: left door and right door, can
Prevent
electrostatic interference. |
| Manual lubrication system | Help lubricate the rail way, maintaining machine. |
| Automatic tool sensor calibration | Help find working home position. |
| Japan OMRON limit switch | 3 pieces for X, Y, Z axis, helping each axis go back to working
home
position. |
| rubber bumpers | 2 pieces for X axis and 4 pieces for Y axis, helping stop axis in
case the
machine axis is out of control. |
Highly flexible towline,fire-resitant
double-sheathed cable | Shanghai CARDIFF brand, China best brand. Long life, could be bent
300000 times. Also can prevent the interference of static
electricity. |
| Type3 or Art cam software | We will give them in the CD. |
Accessory:
1 Tool Box 1
2 Woodworking Knife All type 21 Different size
3 water pump for cooling spindle
4 collet 4 (3.17, 4, 6, 12.7mm)
5 DSP control
6 data line 1
7 Allen wrench M6 1
8 Open-end wrench 27-30 45-52 2
9 Certificate 1
10 Warranty card 1
11 clamp 6
12 Inverter manual Type B 1
13 CD with software and Manuel 1
14 Adjustment screw 4 |
