4x8ft Chinese cheap cnc router , cnc mould die engraving machine , cnc machine 1325 for wood pcb mdf pvc arylic

Features of cnc router 1325:

• working area -1300*2500*200mm
• 4.5kw Italy HSD air cooling spindle
• Adopt FL118 stepper motor and YAKO 2608 big driver (or Leadshine 860H driver)
• 5.5kw Taiwan DELTA inverter
• T-slot & vacuum table, with very powerful absorbing power, can absorb materials of different sizes.
• DSP control system
• With fast working speed, high working efficiency, the engraving speed can be up to 14m/min. The engraving is precise enough, without any Sawtooth ripple, and the cutting edge is quite clear and smooth.

Parameters of cnc router 1325:

Descriptions	Parameters
Modle	1325
Working area	1300*2500*200mm
Control system	DSP control system
Spindle	4.5kw Italy HSD air cooling spindle
Motor	FL118 stepper motor
Driver	YAKO 2608 driver or Leadshine 860H driver
Inverter	5.5kw Taiwan DELTA inverter
X,Y transmission	X,Y axis helical rack and pinion drive
Z transmission	Z axis Taiwan TBI ball screw
Max Travelling speed	40000mm/min
Max Working speed	25000mm/min
Table Surface	Vacuum and T-slot working table
Structure	Frame structure

PS:All the working area and specifications can be customized according to your requests.

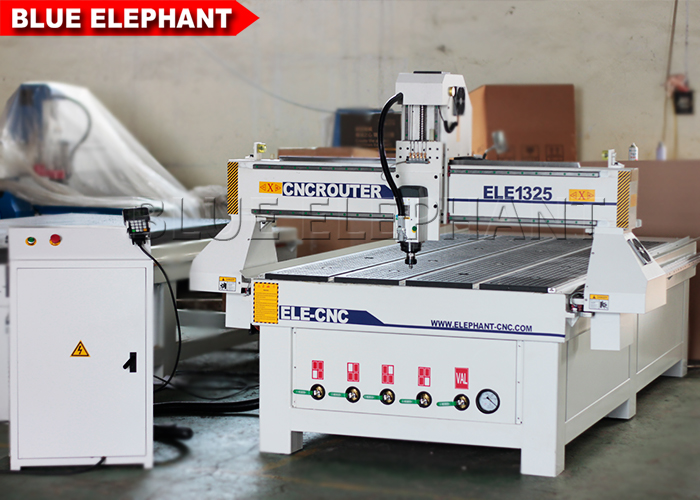

Machine details

Application

• Furniture industry: folding screen, wave board, big wall hanging, advertising sheet, sign making.
• Crafts industry: can be used for most materials like Artificial stone, wood, bamboo, marble, Organic board, Color plates, to do engraving of beautiful patterns and characters.
• wood, acrylic, PVC, PCB, foam, aluminum, copper and so on.

Our service:

1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.

2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.

-Jinan Blue Elephant CNC Machinery is a professional manufacturer of CNC router and laser engraving machine in China. Our machines including ATC CNC router, wood CNC router, stone CNC router, metal CNC router, EPS CNC router , 4 axis CNC router, 5 axis CNC router, plasma cutting machine, laser engraving and cutting machine. We are located in Jinan City, Shandong Province.

    The basement of cnc router machine.with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

    Whether selecting product from our catalog or seeking engineering assistance for your application, you can talk to our sales managers about your requirements.

    Our CNC router are widely used in advertising, woodworking, mould, stone, metal industry. The machine sells well in global area, such as North America, Europe, Middle East, South Africa etc.

    Blue Elephant CNC router has passed the ISO9001, CE, SGS, International Certifications, accept more than 50 countries import licensing and all machine parts use import European brand . Our factory machine quality standard can up to Italy , France , Germany ,Taiwan ,Japan Level.

    We have our own factories and R & D team, mastering the core technology of research and development, specializing in the production of various types of special-shaped machine. We welcome OEM and ODM orders.

Looking forward to agents from all over the world!

Our aim is to be first brand CNC Manufacturer and wholesaler platform.

Welcome the worldwide clients and dealers to visit our factory-Blue Elephant CNC Machinery, we provide free training and technical support. Hoping to establish long term business cooperation.
