    Benchtop CNC Router Machine For Plastic Sign Making Stepping Motor & Driver

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE2030
    Certification : CE, ISO9001,SGS,CIQ
    Price : US $4,999 - 9,999 / Set
    Payment Terms : L/C, D/A, D/P, Western Union, MoneyGram, T/T
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    Benchtop CNC Router Machine For Plastic Sign Making Stepping Motor & Driver

    ELE 2030 china cnc machine , ATC wood cnc machine for plastic sign making


    Features:

    • Working area: 2000mm*3000mm *200mm
    • Steel gantry , strong structure
    • T-slot & vacuum working table
    • 5.5KW Changsheng ATC water cooling spindle
    • 5.5kw Fuling inverter
    • Z axis with Taiwan TBI Ball screw transmission
    • X,Y axis with high precision helical rack gear transmission
    • X,Y,Z axis with Taiwan TBI/PMI/HIWIN Linear Guide
    • Original Ncstudio 63A controller
    • Stepping motor & Driver
    • Double motors for Y axis
    • Oil lubrication system
    • Artcam /Type 3 software
    • Voltage:380V, 3phase, 50/60HZ

    .

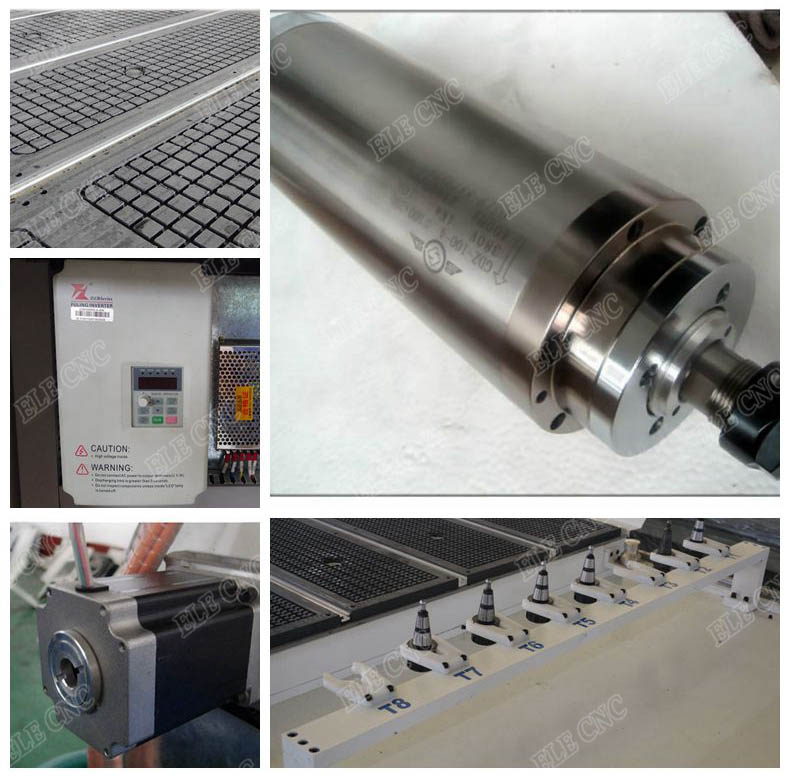

    Main parts


    Technical Parameters


    NumberDescriptionParameter
    1X,Y,Z Working Area2000x3000x200mm
    3X,Y,Z Traveling Positioning Accuracy±0.03/300mm
    4X,Y,Z Repositioning Accuracy±0.03mm
    5Table SurfaceVacuum & T-slot Table
    6Spindle5.5kw Changsheng ATC water cooling spindle
    7X, Y Structure20#Taiwan HIWIN Linear guide and helical rack
    8Z StructureBall screw and#20 Taiwan HIWIN Linear guide
    9Driver and MotorStepper
    10Max. Rapid Travel Rate45000mm/min
    11Max. Working Speed30000mm/min
    12SoftwareArtcam /Type 3 software
    13Spindle Speed0-24000RPM
    14Lubrication systemManual
    15Inverter5.5kw Fuling Inverter
    16Command LanguageG Code
    17Control SystemNcstudio 63A
    18Computer InterfaceUSB
    19Flash Memory512M(U Disk)
    20ColletER25
    21X,Y Resolution<0.01mm
    22Software CompatibilityType3 Software, (Option: Artcam Software)
    23Running Environment Temperature0 - 45 Centigrade
    24Relative Humidity30% - 75%

    Application

    1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,

    craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.


    2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,

    crystal word making, blaster molding, and other advertising materials derivatives making.


    3. die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as

    artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.


    4. relief sculpture and 3D engraving


    Packaging and shipping


    1. Outside Package:Standard export wooden case .

    2. Inner package:strech film .
    For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.

    For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.
