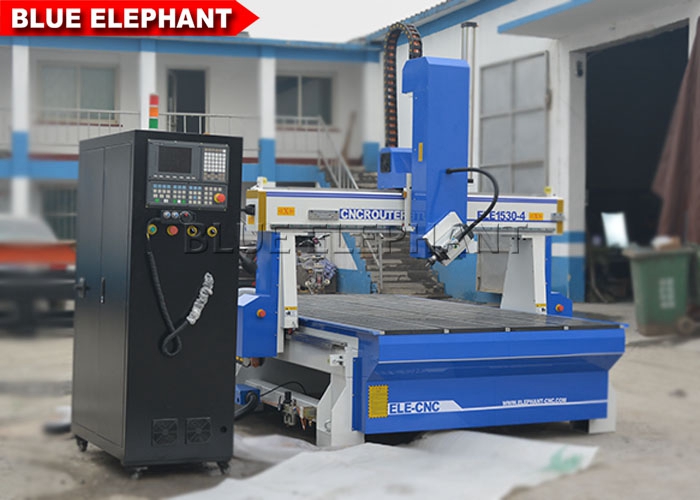

HSD spindle 4.5kw , 1530 4 axis wooden chair making cnc router ,
woodworking vacuum bed cnc router for wood stair
Features:
The spindle can rotated ±90°, this machine is specially designed
for curve surface cabinet, doors and indoor decoration. and also
for some mold prcessing. Can be used for mass-processing with
Vacuum holding way and dust collector. We use top quality
components for the machine, such as HSD ATC spindle, Yaskawa
Inverter, Becker Vacuum pump, Hiwin linear, Syntec control system
and so on, to keep the machine in the best condition even after
working for many years.
Parameter:
| Description | Parameter |
| X,Y,Z Working Area | 1500x3000x700mm*±100° |
| Table Size | 1500×3500mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| X,Y,Z Repositioning Accuracy: | ±0.01mm |
| Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
| Frame | Big Steel Tube Structure |
| X, Y Structure | Helical rack gear , HIWIN Linear guide |
| Z Structure | Imported Ball Screw , HIWIN Linear guide |
| Max. Power Consumption | (Without Spindle) 4.2Kw |
| Max. Rapid Travel Rate | 40000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Power | HSD spindle 4.5kw( Italy ATC spindle for option) |
| Spindle Speed | 0-18000RPM |
| Drive Motors | Japan 850 W YASKAWA servo motor |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| Command Language | G Code |
| Operating System | SYNTEC Control System (model: EZ4M) |
| Computer Interface | USB |
| Flash Memory | 512M |
| Collet | ER25 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | UG , Power mill |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
Application:
1) . WoodFurniture Industry: Wave Plate, fine pattern, antique
furniture, wooden door,
screen, craft sash, composite gates, cupboard doors, interior
doors, sofa legs, headboards
and so on.
2) . Advertising Industry: advertising identification, sigh making,
Acrylic engraving
and cutting, crystal word making, blaster molding, and other
advertising materials
derivatives making.
3) . Die Industry:A sculpture of copper, aluminum, iron and other
metal molds,
as well as artificial marble, sand, plastic sheeting, PVC pipe,
wooden planks and
other non-metallic mold.
4) . Relief Sculpture and 3D Engraving
5) . Cylindrical object
Our Service
1, Within 7 days since your local customs clearance: if the cnc
router’s any parts has any problems,
we will change it free.
2, Exceed 7 days since your local customs clearance but within
warranty period: if the cnc router parts
have any problems, we can change the old machine parts to new ones
free, but you should pay all
the shipping cost.
3, Exceed warranty period: if the cnc router parts have any
problems, we can offer new machine parts
with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if
you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8. Machine will be adjusted before it is delivered , operation
disk/CD was included.
Company Information
Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province .
We have always been developing to the research and manufacturer of
CNC router machine and laser
cutting engraving machine .
We have our R & D department , Quality control department , and
after sale &service department .
Our products are widely used in Woodworking ,Advertising , Model
,Electric , CAD/CAM Industry model ,
Clothing , Package Printing , Marking , Laser sealing and so on .
We had got CE and FDA certification always offer best quality
machine .
Our Philosophy : To Be First Brand -- CNC Manufacturer & wholesaler
Platform !
Just looking forward to service every customer, like you .
