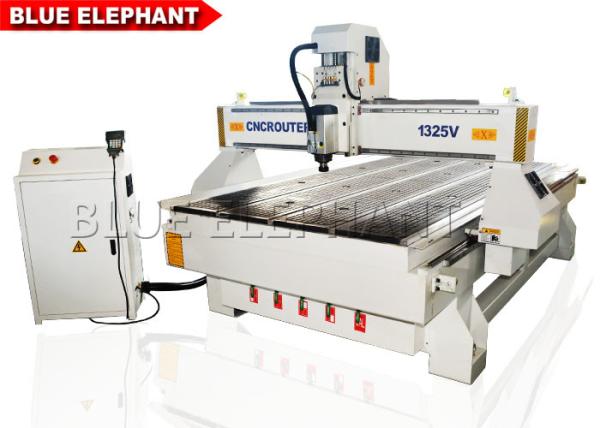

    Kitchen Cabinets Making High Speed CNC Router Machine For Wood Cutting

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1325
    Certification : CE, ISO9001, SGS, CIQ
    Price : US $5,999 - 9,999 / Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    Kitchen Cabinets Making High Speed CNC Router Machine For Wood Cutting

    Industrial Machinery Wood Working, High Moving Speed CNC Router Machine Price for Kitchen Cabinets


    Features:

    • 1300x2500x200 working area
    • 4.5 kw Italy HSD air cooling spindle,18000rpm
    • 5.5 kw Fuling inverter
    • DSP A11 control system
    • FL118 stepper motor and Leadshine 860H driver
    • Imported Taiwan HIWIN 20# Square Linear Guide
    • Z axis Original Taiwan TBI ball screw Transmission
    • T-slot&vacuum table

    • Manual Oil Lubrication system
    • Japan Ormon Limit Switch
    • France Schneider safety switch
    • Separate control box

    • Voltage 220V 3phase 60HZ (option:380v)
    • Plywood case Package
    • Type3/Artcam software

    Technical Parameters:

    DescriptionParameter
    X,Y,Z Working Area1300x2500x200mm
    Spindle4.5kw HSD air cooling spindle
    Inverter5.5kw Fuling Inverter
    Motor driverStepper
    Spindle Speed0-18000RPM
    Control SystemDSP A11
    Table SurfaceT-slot&vacuum Table
    X, Y Structure20#Taiwan HIWIN Linear guide and helical rack
    Z StructureBall screw and#20 Taiwan HIWIN Linear guide
    Max. Rapid Travel Rate45000mm/min
    Max. Working Speed30000mm/min
    X,Y,Z Traveling Positioning Accuracy±0.03/300mm
    X,Y,Z Repositioning Accuracy±0.03mm
    Lubrication systemManual
    Command LanguageG Code
    Computer InterfaceUSB
    Flash Memory512M(U Disk)
    ColletER32
    X,Y Resolution<0.01mm
    Software CompatibilityType3 Software, (Option: Artcam Software)
    Running Environment Temperature0 - 45 Centigrade
    Relative Humidity30% - 75%




    Main parts:

    Application

    Furniture:ideally suitable for processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.

    Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.

    Packaging and shipping:

    1. Outside Package:Standard export wooden case .

    2. Inner package:strech film .
    For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.

    For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.

    Please contact us ,
    So we can help you select the right system to meet your needs and fit your budget !
