3d atc cnc router for wood , 2060 cnc router machine with 8 tools
auto tool change
Features:
1. Working area:2000*6000*300mm
2. 9kw Italy HSD ATC air cooling spindle,24000RPM
3. Taiwan SYNTEC 6MB control system
4. Cylinder oposition system
5. Spindle cover for safety operation
6. Carousel tool magazine with 8 tools
7. ISO 30 tool holder,can be with 20mm max.diameter tools
8. Auto oil mist cooling sprayer for working on metal
9. #25 Taiwan HINWIN linear guide rail
10. High-precision helical rack gear
11. Vacuum&T-slot working table with 12 zones
12. 1kw Japanese YASKAWA servo system
Video on youtube: https://www.youtube.com/watch?v=wjc5BIbLyiY
Parameters:
| 1 | Model | ELE- 2060 ATC |
| 2 | X,Y,Z Working Area | 2000x6000x300mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.01mm |
| 5 | Table Surface | Vacuum and T-slot Combined |
| 6 | Frame | Thicker steel Square Tube Heavy structure ,15mm thicken steel
gantry with T type |
| 7 | X, Y Structure | Helical Gear and rack transmission, Taiwan HIWIN Linear Rail |
| 8 | Z Structure | Taiwan TBI Ball Screw, Taiwan HIWIN Linear guide Rail |
| 9 | Max. Rapid Travel Rate | 90000mm/min |
| 10 | Max. Working Speed | 60000mm/min |
| 11 | Spindle Power | 9KW HSD ATC spindle from Italy |
| 12 | Spindle Speed | 0-24000RPM |
| 13 | Drive Motors | Germany SIEMENS/Japan YASAKAWA/ Taiwan DELTA |
| 14 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 15 | Command Language | G Code, PLT |
| 16 | Operating System | Tawain SYNTEC/Germany SIEMENS |
| 17 | Computer Interface | CF card interface |
| 18 | Collet | ISO30 |
| 19 | Inverter | Taiwan DELTA 11kw |
| 20 | Software Compatibility | Type 3 /Artcam |
Main parts:
Applications:
1).Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
MDF, craft sash, composite gates, cupboard doors, interior doors,
headboards
and so on.
2).Advertising industry: advertising identification, sign making, Acrylic engraving and
cutting,
crystal word making, blaster molding, and other advertising
materials derivatives making.
3).Die industry: A sculpture of copper, aluminum, iron and other metal molds, as
well as artificial marble,
sand, plastic sheeting, PVC pipe, wooden planks and other
non-metallic mold.
4).Relief sculpture and 3D engraving

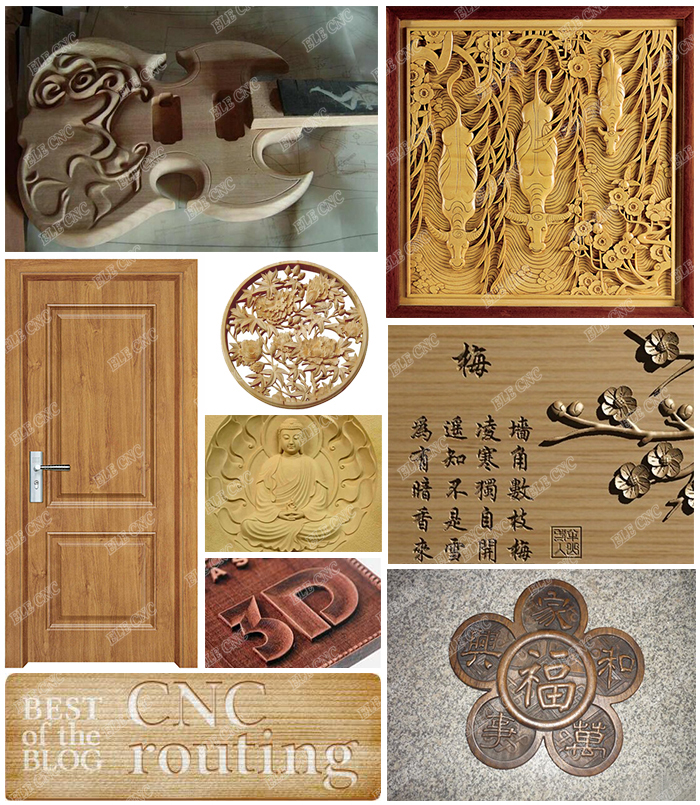

Sample show:
Packaging & Shipping
About the packing:
1 . Outside package:Standard export wooden cases
2 . Inner package:Strech film
About the shipping:
For the shipping,you can choose the sea shipping,air shipping,and
you also can choose the transmission of expressage: DHL/TNT/Fedex
and so on.You can choose the EXW/FOB/CIF/DDP/DDU.It depends on what
you would like better.
