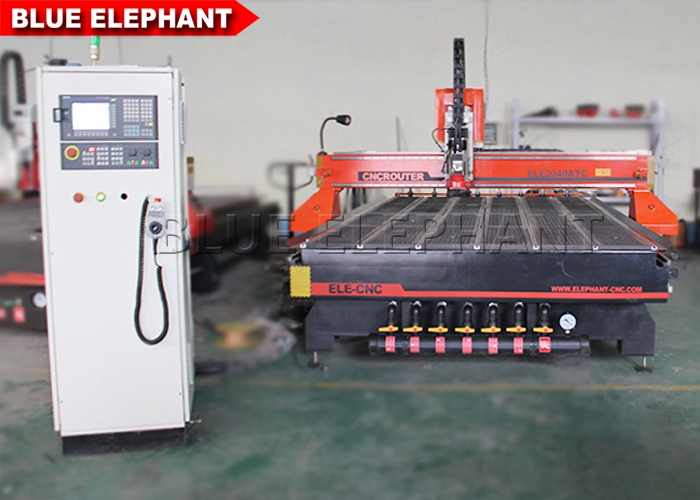

    Water cooling spindle (Top brand in China) , high precision DSP controller cnc router 2040 for wooden furniture

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE2040
    Certification : CE, ISO9001,SGS,CIQ
    Price : 15999-25999$
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200sets per Month
    Delivery Time : 15-20working days
    • Product Details
    • Company Profile

    Water cooling spindle (Top brand in China) , high precision DSP controller cnc router 2040 for wooden furniture

    Water cooling spindle (Top brand in China) , high precision DSP controller cnc router 2040 for wooden furniture


    Features of cnc router 2040 :


    Welded steel structure

    Vacuum & T-slot working table

    Water cooling spindle (Top brand in China)

    Z axis with Taiwan TBI Ball screw transmission

    X,Y axis with high precision helical rack gear transmission

    X,Y,Z axis with Taiwan PMI/HIWIN Linear Guide

    DSP handle control system with USB interface

    FULING inverter ( TOP Inverter brand in China)

    Driver: YAKO2608 or Leadshine 860H driver

    Stepper motor FL118 with 8 wires(Double motors for Y axis)

    Tool calibration sensor

    Oil lubrication system

    Switch: Japanese OMRON Switch


    Parameter of cnc router 2040 :


    NumberDescriptionParameter
    1X,Y,Z Working Area2000x4000x200mm
    3X,Y,Z Traveling Positioning Accuracy±0.03/300mm
    4X,Y,Z Repositioning Accuracy±0.03mm
    5Table SurfaceVacuum &T-slot Table
    6Framesteel tube frame
    7X, Y StructureRack and Pinion Drive, HIWIN Rail Linear Bearings
    8Z StructureBall screw and Hiwin Rail Linear Bearings
    9Max. Power Consumption2.0KW
    10Max. Rapid Travel Rate45000mm/min
    11Max. Working Speed30000mm/min
    12Spindle Power3KW air cooling spindle(optional)
    13Spindle Speed0-24000RPM
    14Drive MotorsYako Stepper Motor (optional)
    15Working VoltageAC380V/50/60Hz,3PH (Option: 220V)
    16Command LanguageG Code
    17Operating SystemDSP System (Options: Ncstudio /SYETEC Software)
    18Computer InterfaceUSB
    19Flash Memory128M(U Disk)
    20ColletER25
    21X,Y Resolution<0.01mm
    22Software CompatibilityType3 Software, (Option: Artcam Software)
    23Running Environment Temperature0 - 45 Centigrade
    24Relative Humidity30% - 75%

    Application & samples :


    1 . WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,

    cupboard doors, interior doors, sofa legs, headboards and so on.

    2 . Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding,

    and other advertising materials derivatives making.

    3 . die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,

    PVC pipe, wooden planks and other non-metallic mold.

    4 . relief sculpture and 3D engraving


    After-sale service:


    1 , Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
    2 , Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems,

    we can change the old machine parts to new ones free, but you should pay all the shipping cost.
    3 , Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
    4 , We offer 24 hours technical support by call, email
    5 , Our technician can give you remote guide online(Skype or MSN) if you have any question
    6 , We can record videos of operating the laser machine
    7 , Free training course in our factory
    8 . Machine will be adjusted before it is delivered , operation disk/CD was included.
