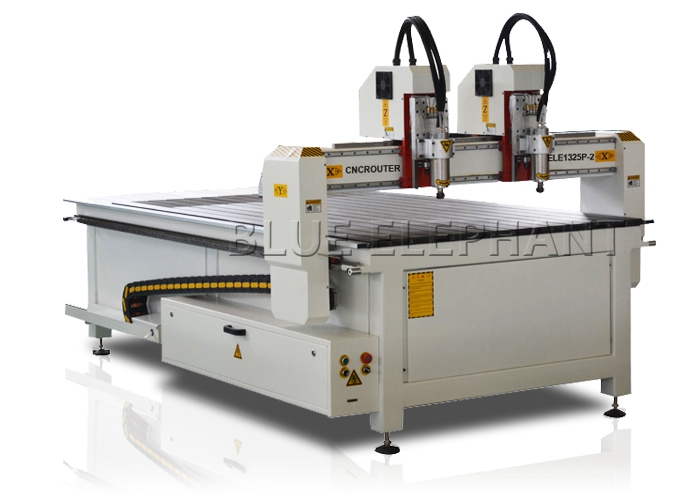

    3kw water cooling spindle(top brand in China) , Jinan factory supply separate Two heads CNC Router with rotary ELE -1325

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1325
    Certification : CE, ISO9001,SGS,CIQ
    Price : 13999-12999$
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200sets per Month
    Delivery Time : 10-15working days
    • Product Details
    • Company Profile

    3kw water cooling spindle(top brand in China) , Jinan factory supply separate Two heads CNC Router with rotary ELE -1325

    3kw water cooling spindle(top brand in China) , Jinan factory supply separate Two heads CNC Router with rotary ELE - 1325


    1 . Parameters


    DescriptionParameter
    X,Y,Z Working Area1300x2500x160mm
    X,Y,Z Traveling Positioning±0.03/300mm
    X,Y,Z Repositioning Accuracy±0.03mm
    Table SurfaceT-slot Table
    FrameWelded Structure
    X, Y StructureRack and Pinion Drive, Hiwin Rail Linear Bearings
    Z StructureHiwin Rail Linear Bearings and Ball Screw
    Max. Power Consumption(Without Spindle) 2.5kw~3Kw
    Max. Rapid Travel Rate33000mm/min
    Spindle Power3KW water cooling spindle
    Spindle Speed0-24000RPM
    Drive MotorsStepper System
    Working VoltageAC380V V/50/60Hz,3PH (Option: 220V)
    Operating SystemDSP control system(options: NCstudio/Mach3 PC Software)

    2. The features


    1) , 3kw water cooling spindle(top brand in China), big strength, long life, and low noise.

    2) , Popular DSP controller, it’s with USB interface, no need connecting to PC,both easy operation and convenient.

    3) , it’s suitable for wood doors, windows, or other wood furniture with symmetrical patterns.

    4) ,Taiwan TBI linear guide, imported from Taiwan. It’s high precision, long life and top pressure-tolerant performance.


    3.The applications


    Strong functions, easy operation, durable, reliable performance, high efficiency, applicable to batch process any wooden products, antique furniture, crafts gifts, relief processing.

    1) . WoodFurniture Industry:Wave Plate, fine pattern, antique furniture, wooden door, screen,MDF, craft sash, composite gates,cupboard doors, interior doors, sofa legs, headboards and so on.

    2) . Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

    3) . die industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

    4) . relief sculpture and 3D engraving


    After-sale service:


    1 , Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.

    2 , Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

    3 , Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.

    4 , We offer 24 hours technical support by call, email

    5 , Our technician can give you remote guide online(Skype or MSN) if you have any question

    6 , We can record videos of operating the laser machine

    7 , Free training course in our factory

    8 . Machine will be adjusted before it is delivered , operation disk/CD was included.
