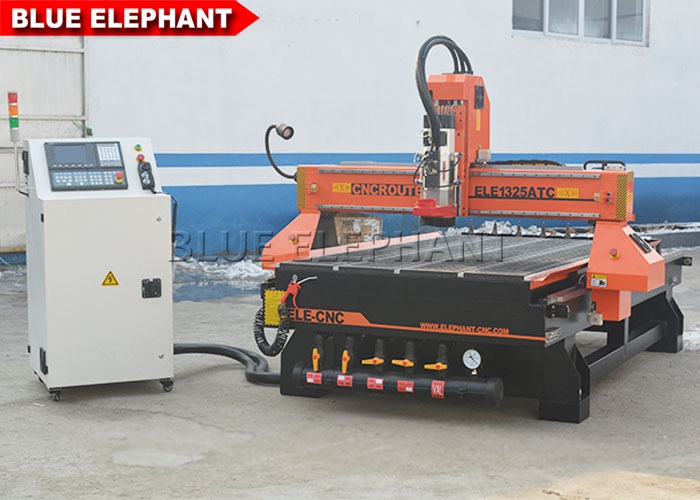

    Taiwan SYNTEC control system 1325 big size ATC 3d CNC router , wood working cnc router with carousel auto tool changer

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1325
    Certification : CE, ISO9001,SGS,CIQ
    Price : 15999-29999$
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200sets per Month
    Delivery Time : 15-20working days
    • Product Details
    • Company Profile

    Taiwan SYNTEC control system 1325 big size ATC 3d CNC router , wood working cnc router with carousel auto tool changer

    Taiwan SYNTEC control system 1325 big size ATC 3d CNC router , wood working cnc router with carousel auto tool changer



    Product Application

    1 . Advertisement: engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials. Including marble, brass, steel, and other metallic material.

    2 . Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.

    3 . Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.

    4 . Architectural models: engraving fine window, fencing and wall patterns, etc.

    5 . Seal: engraving seals and medal on materials such as buffalo horn, wood etc.

    6 . Label: engraving character, number, and other pattern on label for products and on product directly.

    7 . Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.


    Parameters of China Cnc Router Machine


    Working Size
    1300*2500*200mm(Can be customized)
    Traveling Positioning Accuracy
    ±0.03/300mm
    Repositioning Accuracy
    ±0.03mm
    Spindle Power
    9KW Italy HSD ATC air cooling spindle
    Spindle Speed
    24000RPM
    X, Y axis
    Helical rack, Hiwin 25# Rail Linear Bearing
    Z axis
    Hiwin Rail 25# Linear Bearing & TBI Ball Screw
    Max. Rapid Travel Rate
    40000mm/min
    Max. Working Speed
    25000mm/min
    Servo motor
    Japan YASKAWA servo motor
    Control System
    Taiwan SYNTEC control system
    Table
    T-slot & vacuum Table
    Frame
    Welded Structure
    Servo driver
    German Siemens servo driver
    Collet
    ISO30
    X,Y Resolution
    <0.01mm
    Software Compatibility
    Type3/UcancameV9/Artcam Software
    Running Environment Temperature
    0 - 45 Centigrade
    Relative Humidity
    30% - 75%

    Main Features

    1 . Air cooling spindle----9 KW Italy HSD atc air cooling spindle.Well-known brands ,long working life,low noise,strong cutting ability to ensure the long time working.
    2 .Germany Simens control system----Easy operation. Support offline operation,more table.(Optional :Syntec control system)
    3 . Germany Simens servo motor----High-performance drive motor to ensure that the machines high speed and accuracy.(Optional: Japan Yaskawa servo motor)
    4 . HIWIN linear rail 25# from Taiwan ----Smooth and precise transmission,low noise,and lifetime is 10 times longer than common rail way.
    5 . Vacuum & T-slot combined worktable----Can both absorb big materials by vacuum power and fix small materials by clamps. There is MDF boardon it for protection.
    6 . Helical rack transmission----Ensure fast speed,big loading capacity,strong power,long lifetime, and it ensures the machine more stable.
    7 . Carrousel Tool Magazine(ATC 1325 cnc router)---- With 8 tool holders and 8 tool forks,can save working time and will work so convenient. Can also choice the 6 or 10 tool holders and forks.


    Our Service


    1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems,

    we will change it free.

    2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts

    have any problems, we can change the old machine parts to new ones free, but you should pay all

    the shipping cost.

    3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts

    with cost price and you also should pay all the shipping cost.

    4, We offer 24 hours technical support by call, and email.

    5, Our technician can give you remote guide online(Skype or MSN) if you have any question.

    6, We can record videos of operating the laser machine.

    7, Free training course in our factory.

    8. Machine will be adjusted before it is delivered , operation disk/CD was included.


    Company Information


    Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province .

    We have always been developing to the research and manufacturer of CNC router machine and laser

    cutting engraving machine .

    We have our R & D department , Quality control department , and after sale &service department .

    Our products are widely used in Woodworking ,Advertising , Model ,Electric , CAD/CAM Industry model ,

    Clothing , Package Printing , Marking , Laser sealing and so on .

    We had got CE and FDA certification always offer best quality machine .

    Our Philosophy : To Be First Brand -- CNC Manufacturer & wholesaler Platform !

    Just looking forward to service every customer, like you .
