    Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELECNC- 1530
    Certification : CE, ISO9001, SGS, CIQ
    Price : US $6,000 - 7,999 / Set
    Payment Terms : D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

    Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone

    Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone

    Features:

    • The latest multi-functional stone engraving machine.

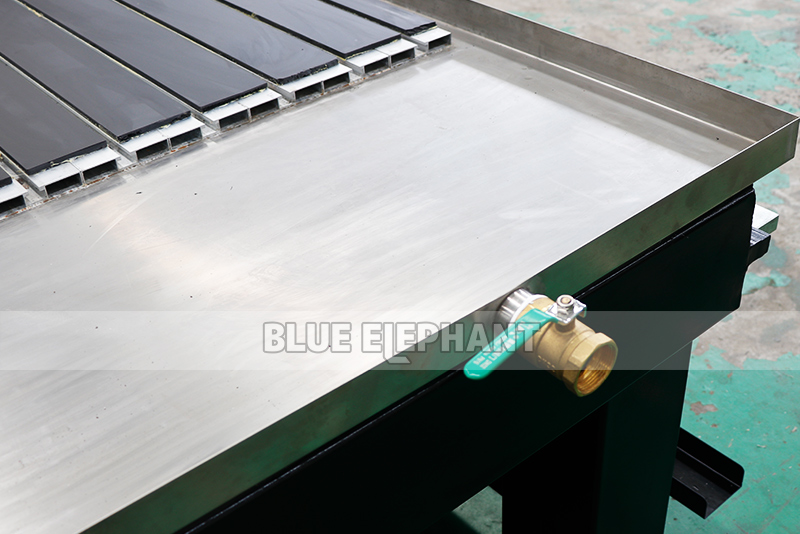

    • After improvement, the large water tank is more practical, avoiding the turbulent flow of water in the water spray process of spindle.
    • At the same time, additional mist cooling spray device can also help you process Soft metals like gold, copper, aluminum and pvc etc.
    • The combination of water-cooled spindles, stepper motors and ABBA square rails etc makes this economical and practical type featured available.

    Parameters:

    DescriptionParameter
    X,Y,Z Working Area1200x3000x200mm
    Table SurfaceT-slot +PVC protection working table
    StructureIndustrial class square tube strong structure

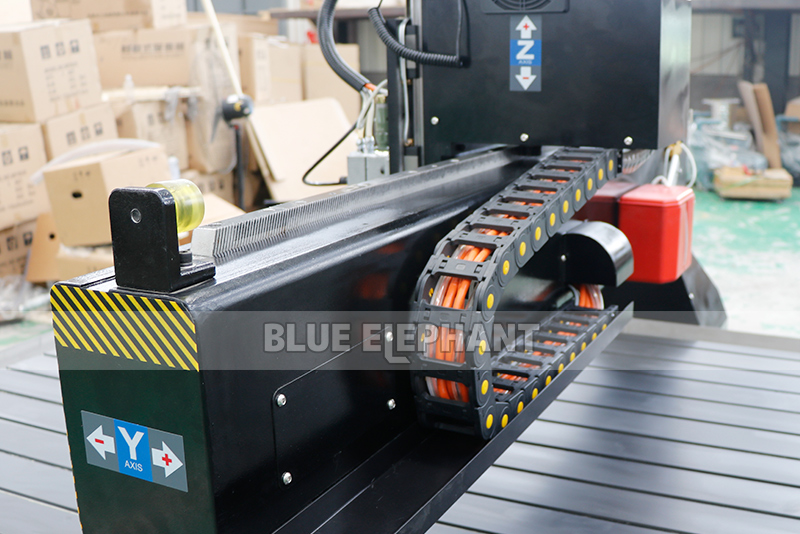

    X, Y, Z axis StructureRack and gear for 3 axis, X axis, Y axis, Z axis
    TransmissionTaiwan TBI ball screw
    X,Y Resolution<0.01mm
    Spindle PowerChangsheng 3kw water cooling spindle
    Spindle Speed0-24000RPM

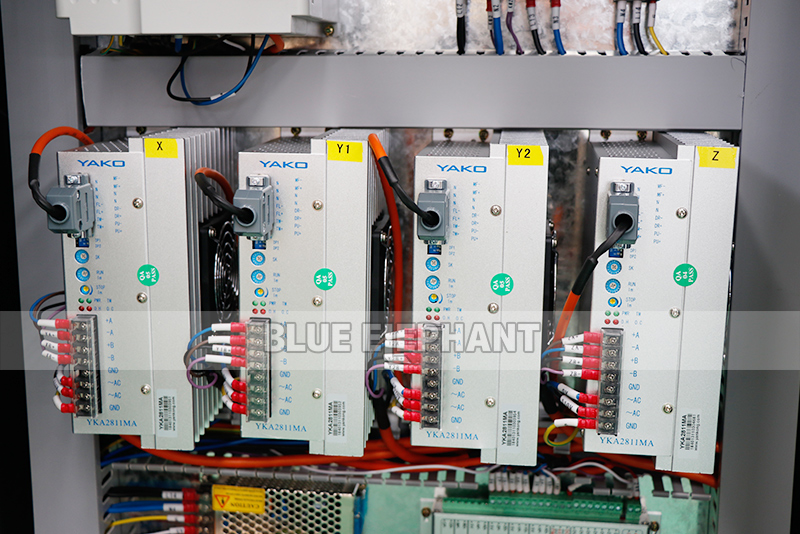

    Drive MotorsFL118 stepper motor and YAKO2811 drive
    InverterFuling 3.7kw inverter
    Control SystemMach3 3 axis control system
    LubricationManual Lubrication system
    Tool sensorManual tool sensor calibration
    Control boxSingle Control box
    OptionWater tank for option;

    Water mist cooling sprayer;

    Dust collector system

    Limit switchJapan OMRON limit switch for X, Y, Z axis
    Command LanguageG Code
    Computer InterfaceUSB
    Software CompatibilityARTCAM software
    Running Environment Temperature0 – 45 Centigrade
    Relative Humidity30% – 75%

    PS:All the working area and specifications can be customized according to your requests.










    Packaging & Delivery

    1. Outside package:Standard marine export plywood case.
    2. inner package:Stretch film and plastic film for humidity.
    3. We can package according to your requests.
    4. Delivery Detail: Shipped in 15 working days after payment.

    Our Factory

    • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
    • We have our R & D department, Quality control department, and after sale & service department.
    • Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
    • We had got CE and ISO9001 certification always offer best quality machine.
