    ELECNC- 6060 Mini Advertising CNC Router with Moving Table for Carving Plywood

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELECNC- 6060 Mini Advertising CNC Router
    Certification : CE, ISO9001, SGS, CIQ
    Price : US $3,800 - 4,999 / Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

    ELECNC- 6060 Mini Advertising CNC Router with Moving Table for Carving Plywood

    ELECNC- 6060 Mini Advertising CNC Router with Moving Table

    for Carving Plywood



    Features:

    • Delivery:Light Frame and easy to pack and ship
    • DSP A11 Control system:Easy operating system with handle

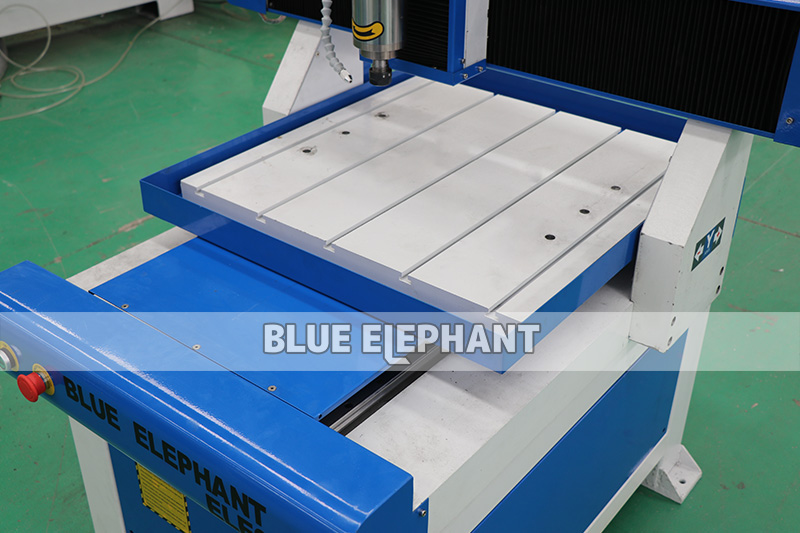

    • Table moving:much more precise than gantry moving, much better finished wooden figures by table moving
    • Water mist cooling sprayer with water tank: very suitable for processing soft metal, like aluminum, copper, etc.

    Parameters:

    DescriptionsParameters
    1. ModelELECNC-6060
    2. Working area600*600*130mm
    3. Control systemDSP A11 control system
    4. Spindle2.2kw Changsheng water cooling spindle
    5. Spindle speed0-24000rpm/min
    6. Motor450A stepper motor
    7. DriverLeadshine M542 driver
    8. Working speed12m/min
    9. Inverter2.2kw Fuling Inverter
    10. Table surfaceT-slot working table, table moving
    11. Linear railTBI ball screw and ABBA 20# linear square guide
    12. Control boxInner box
    13. Rotary deviceoptional
    14. Mist cooling sprayerWater mist cooling sprayer with water tank
    15. Tool sensor calibrationSimple tool sensor calibration
    17. Working voltage220V, 1phase, 50Hz

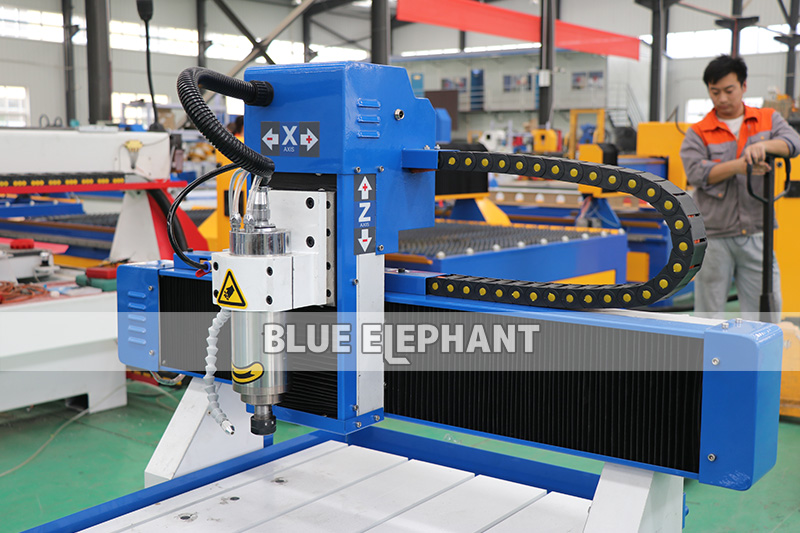

    Detail Images:







    Packaging & Delivery


    1. Outside package:Standard marine export plywood case.
    2. inner package:Stretch film and plastic film for humidity.
    3. We can package according to your requests.
    4. Delivery Detail: Shipped in 15 working days after payment.

    Our Factory

    • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
    • We have our R & D department, Quality control department, and after sale & service department.
    • Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
    • We had got CE and ISO9001 certification always offer best quality machine.
