Parameters:| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300*2500*200mm |
| 2 | Table Size | 1300×2500mm |
| 3 | Table Surface | T-slot & vacuum work table |
| 4 | Frame | Welded Structure |
| 5 | X, Y Structure | Sweden SKF Group ABBA #20 linear guide for all axis
Helical rack gear transmission for X,Y axis |
| 6 | Z Structure | Taiwan TBI ball screw for Z axis |
| 7 | Spindle Power | 3*3.5kw HQD air cooling spindle |
| 8 | Spindle Speed | 0-18000RPM |

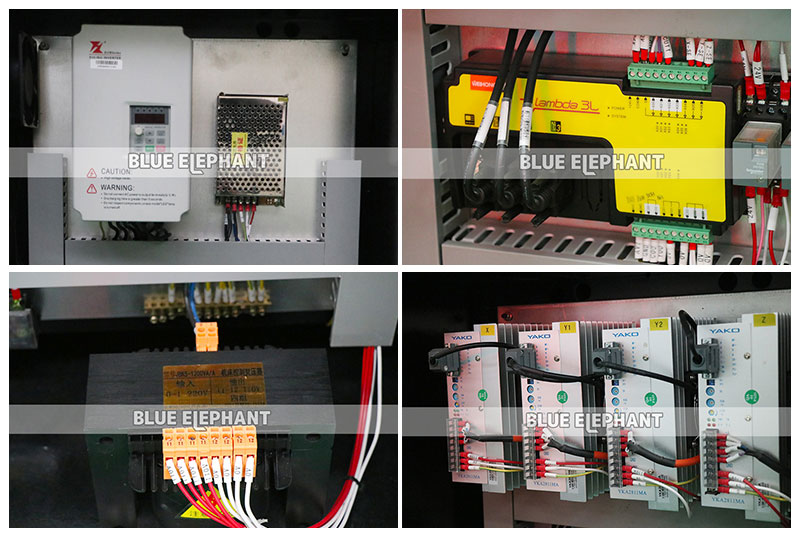

| 9 | Drive Motors | FL118 stepper motor and YAKO2811 bigger and stronger driver |
| 10 | Working Voltage | 380v, 3 phase, 50/60HZ (Option: AC220V/50/60Hz,3PH) |
| 11 | Command Language | G Code |
| 12 | Operating System | NCPM95A-3L control system with computer control box |
| 13 | Computer Interface | USB |
| 14 | Collet | ER25 |
| 15 | Inverter | 3.7kw Fuling inverter |
| 16 | Running Environment Temperature | 0 - 45 Centigrade |
| 17 | Relative Humidity | 30% - 75% |
Samples & Applications:
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors, interior doors, sofa
legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising
materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as
well as artificial marble, sand , plastic sheeting, PVC pipe, and
other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Customers Feedback:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc
router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within
warranty period: if the cnc router parts have any problems, we can
change the old machine parts to new ones free, but you should pay
all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any
problems, we can offer new machine parts with cost price and you
also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or
WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation
disk/CD was included.
Our factory:
---10 years factory experience
---Professional CNC machinery manufacturer
---very professionally produce 3 axis,4 axis, 5 axis, ATC cnc
router,laser cutting machine
---The price will be 20% off in 2016
Looking forward for the agents from all over the world! Welcome to
contact us!
