1325 cnc router machine 4 axis , cnc router wood carving machine
for sale

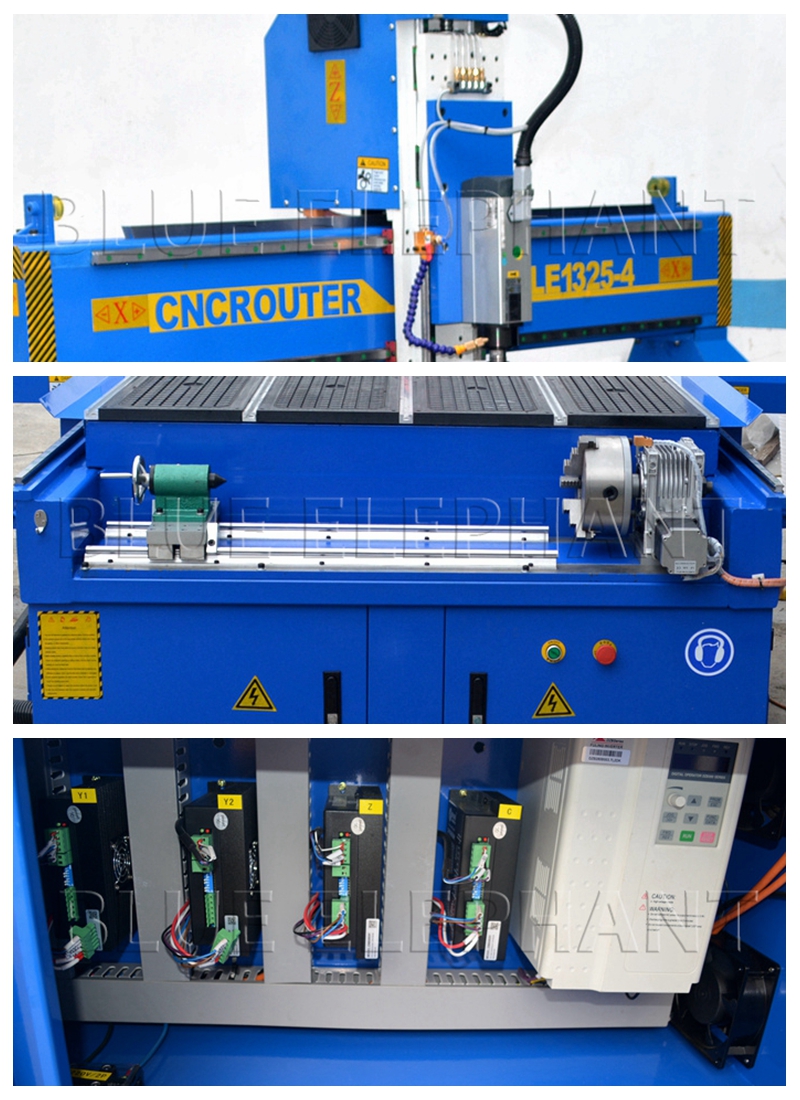

Features of cnc router machine 4 axis:
- 1300*2500mm working area .
- with rotary device for cylinder object .
- Vacuum working table . Mechanical fixing small processing materials
.
- 3kw Italy HSD air cooling spindle , It’s big strength and higher
efficiency ,
- Dust collection system , it can keep a clean , less-dust working
surrounding which is helpful to your healthy ; also , it can reduce
the surface dust of linear guide , ball screw and gear transmission
, reducing the maintaining cost .
Parameters of cnc router machine 4 axis:
| Description | Parameter |
| X,Y,Z Working Area | 1300x2500x200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | Vacuum and T-slot Table |
| Frame | Welded Structure |
| X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 3KW |
| Spindle Speed | 0-18000RPM |
| Drive Motors | Stepper System |
| Working Voltage | AC380V/220v,50/60Hz,1ph/3PH |
| Command Language | G Code |
| Operating System | DSP System(Options: Ncstudio/Mach3 PC Software) |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| Collet | ER25 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
PS:All the working area and specifications can be customized
according to your requests.
Product Details of wood cutting router:
Applications:
1.Wood furnitur industry : Wave plate , fine pattern , antique
furniture , wooden door , screen , craft sash , composite gates ,
cupboard doors , interior doors , sofa legs , headboards and so on
.
2.Advertising industry : Advertising indentification , sign making
, acrylic engraving and cutting , crystal word making , blaster
molding , and other advertising materials derivatives making .
3.Die industry : A sculpture of copper , aluminum , iron and other
metal molds , as well as artificial marble , sand , plastic
sheeting , PVC pipe , wooden planjs and other non-metallic mold .
4.Relief sculpture and 3D engraving
5.Cylindrical object
Samples:
Packaging & Delivery:
Packaging & Delivery
Packaging Details: 1.Outside package:Standard marine export plywood
case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15-18 working days after payment.
Customers Feedback:
Our Service:
1, Within 7 days since your local customs clearance: if the cnc
router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within
warranty period: if the cnc router parts have any problems, we can
change the old machine parts to new ones free, but you should pay
all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any
problems, we can offer new machine parts with cost price and you
also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or
WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation
disk/CD was included.
Welcome to our factory:
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been
developed to the research and manufacturer of CNC router machine
and laser cutting engraving machine.
- We have our R & D department, Quality control department, and after
sale & service department.
- Our products are widely used in Woodworking, Advertising, Model,
Electric, CAD/CAM Industry model, Clothing, Package Printing,
Marking, Laser sealing and so on.
- We had got CE and ISO9001 certification always offer best quality
machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler
Platform!
- Just looking forward to service every customer, like you.
