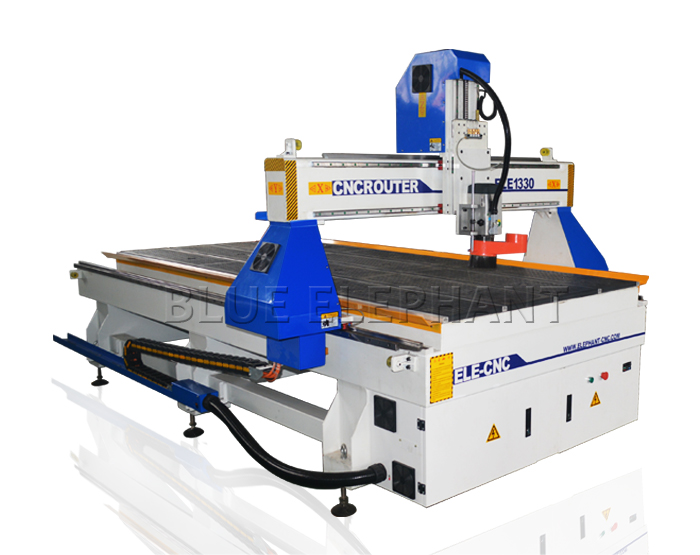

High moving speed 3 axis cnc wood router machine , cnc machining 1330 , cnc router for sale

    Buy cheap High moving speed 3 axis cnc wood router machine , cnc machining 1330 , cnc router for sale from wholesalers

    Buy cheap High moving speed 3 axis cnc wood router machine , cnc machining 1330 , cnc router for sale from wholesalers
    • Buy cheap High moving speed 3 axis cnc wood router machine , cnc machining 1330 , cnc router for sale from wholesalers

    High moving speed 3 axis cnc wood router machine , cnc machining 1330 , cnc router for sale

    Ask Lasest Price
    Brand Name : Blue Elephant
    Model Number : ELE1325
    Price : 6000
    Payment Terms : L/C, D/A, T/T, Western Union
    Supply Ability : 200sets/month
    Delivery Time : 15days
    • Product Details
    • Company Profile

    High moving speed 3 axis cnc wood router machine , cnc machining 1330 , cnc router for sale

    High moving speed 3 axis cnc wood router machine , cnc machining 1330 , cnc router for sale

    Features of 1330 cnc router cutter:

    • 4.5 kw HSD ATC air cooling spindle from Italy
    • 5.5kw Delta inverter from Taiwan
    • NCstudio control system
    • 750w Leadshine mixed servo motor
    • 7.5kw Whirlpool vacuum pump
    • Vacuum and T-slot working table
    • #20 Taiwan HINWIN square linear guide
    • Taiwan TBI ball screw
    • 380V,3PH,50HZ(220V for optional)

    Product Details of 1330 cnc router cutter:


    Parameters of 1330 cnc router cutter:

    DescriptionParameter
    X,Y,Z Working Area1300x2500x200mm
    Spindle4.5kw HSD air cooling spindle
    Inverter5.5kw Delta Inverter
    Motor driver750w Leadshine mixed servo
    Spindle Speed0-18000RPM
    Control SystemNCstudio
    Table SurfaceT-slot&vacuum Table
    X, Y Structure#20 Taiwan HIWIN Linear guide and helical rack
    Z StructureBall screw and#20 Taiwan HIWIN Linear guide
    Max. Rapid Travel Rate45000mm/min
    Max. Working Speed30000mm/min
    X,Y,Z Traveling Positioning Accuracy±0.03/300mm
    X,Y,Z Repositioning Accuracy±0.03mm
    Lubrication systemManual
    Command LanguageG Code
    Computer InterfaceUSB
    ColletER32
    X,Y Resolution<0.01mm
    Software CompatibilityType3 Software, (Option: Artcam Software)
    Running Environment Temperature0 - 45 Centigrade
    Relative Humidity30% - 75%

    PS:All the working area and specifications can be customized according to your requests.


    Our Factory

    • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
    • Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
    • Just looking forward to service every customer, like you.
