1122 Removable Rotary Device 4 Axis Electric Wood Cnc Cutter Machine Woodworking Equipment in Good Price for Wooden Craf

Jinan Blue Elephant CNC Machinery Co., Ltd.
Contact Now
    Buy cheap 1122 Removable Rotary Device 4 Axis Electric Wood Cnc Cutter Machine Woodworking Equipment in Good Price for Wooden Craf from wholesalers

    Buy cheap 1122 Removable Rotary Device 4 Axis Electric Wood Cnc Cutter Machine Woodworking Equipment in Good Price for Wooden Craf from wholesalers
    • Buy cheap 1122 Removable Rotary Device 4 Axis Electric Wood Cnc Cutter Machine Woodworking Equipment in Good Price for Wooden Craf from wholesalers

    1122 Removable Rotary Device 4 Axis Electric Wood Cnc Cutter Machine Woodworking Equipment in Good Price for Wooden Craf

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1122-4
    Certification : CE ISO9001 SGS BV TUV ISO9000
    Price : US $8,010-9,100 / Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 15-30 working days after payment
    • Product Details
    • Company Profile

    1122 Removable Rotary Device 4 Axis Electric Wood Cnc Cutter Machine Woodworking Equipment in Good Price for Wooden Craf

    1122 Removable Rotary Device 4 Axis Electric Wood Cnc Cutter Machine Woodworking Equipment in Good Price for Wooden Crafts


    Features of wood cnc router prices:

    • Working Size: 1100x2200x350mm;
    • Heavy Duty 6mm Steel machine bed; Moving Steel Gantry;
    • Vacuum Table + Aluminum T slot working table;
    • Helical rack and pinions for axis;Z axis by Taiwan TBI ball screw;
    • Taiwan PMI 20mm square guide rails for 3 axis;
    • Chinese 3.5kw air cooling spindle;
    • China 3.7kw FULING Inverter;
    • LEADSHINE 750W Servo motor and Driver;
    • Tool sensor system;
    • 4 Axis DSP A18 control system with usb port;
    • Rotary Axis: Diameter: 200mm; Length:1200mm;
    • Working Voltage: 220V/1Phase, 60HZ.
    • Manual Oil lubrication system.
    • 2 Sets 2.2kw air cooling vacuum pump;

    Product Details of wood cnc router prices:

    Parameters of wood cnc router prices:

    DescriptionsParameters
    ModelELE1122-4
    Working area1100*2200*350mm
    Control systemDSP A18 control system for 4 axis
    Control boxInner box with French Schneider rotary handle
    Spindle3.5kw HQD air cooled spindle
    Spindle speed0-18000RPM
    Motor5 sets 750W Leadshine Hybrid Servo Motors
    Driver5 sets Leadshine Hybrid Servo Drivers
    Inverter3.7kw Fuling Inverter
    Table surfaceT-slot and vacuum working table with 4 zones
    StructureNew type thicker and bigger heavy duty welded frame and gantry
    Rotary device200mm diameter and 1200mm length for rotary device
    Voltage220V, 1Ph, 60Hz (380V for optional)
    Lubrication systemAutomatic lubrication system
    Transmission

    X,Y rack and pinion drive; Z Taiwan TBI ball screw

    Sweden ABBA linear square rail 20# for X,Y,Z axis

    Vacuum pump2 sets separate 2.2kw air cooled vacuum pump (220V, 1Ph, 60Hz)
    SoftwareARTCAM

    PS:All the working area and specifications can be customized according to your requests.


    Applications:

    MDF, PLYWOOD, PLASTIC, WOOD, ALUMINUM AND COPPER CUTTING AND EBGRAVING. Suitable with Advertisment Sign and furniture making.

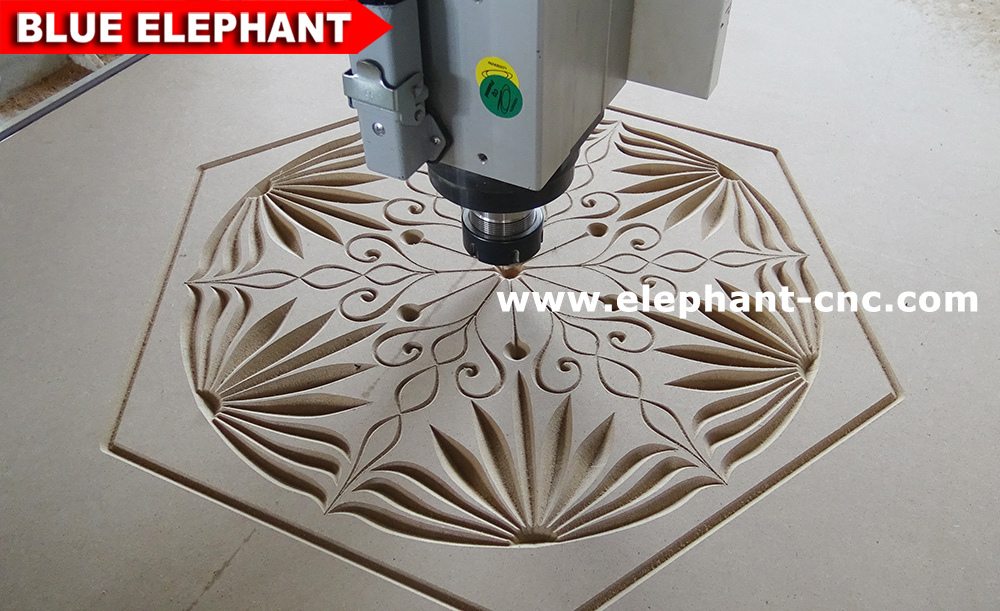

    Samples:


    Packaging & Delivery:

    1.Outside Package: Standard export wooden case .

    2.Inner package: strech film .

    For shipping, you can choose the sea shipping,air shipping or the transmission of expressage: DHL/TNT/Fedex.


    For terms of payment, you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.


    Guarantee and After-sale service:


    12 months for the whole machine .

    1, Technical support by phone , email or MSN/Skype around the clock

    2, Friendly English version manual and operation video CD disk

    3, Engineer available to service machinery overseas


    Welcome to our factory:

    • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
    • Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
    • Just looking forward to service every customer, like you.

    Contact us:

    Skype: elephantcnc

    WhatsApp/Mobile: 0086-15064026772

    Web: www.elephant-cnc.com
