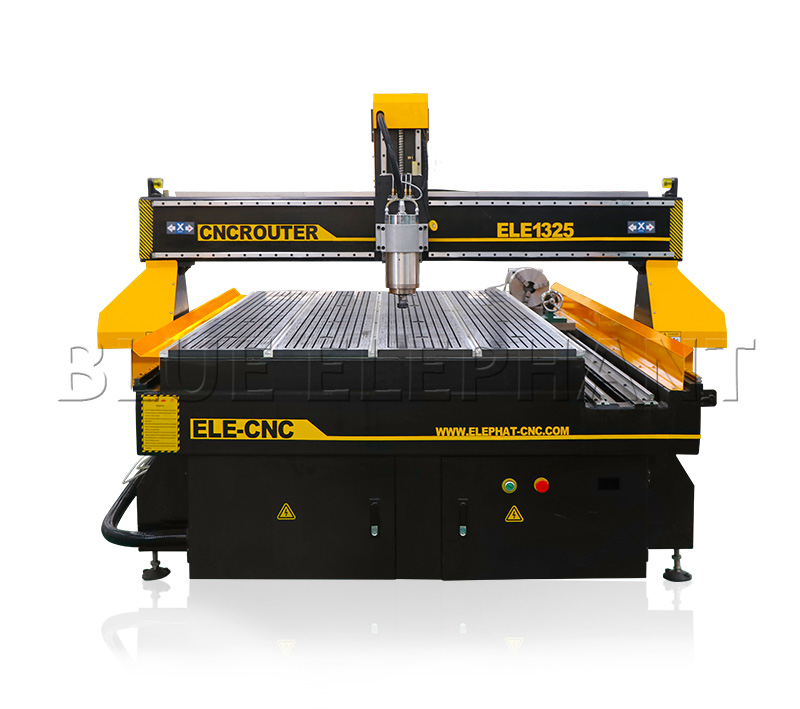

Cheap Factory Price 4 Axis Wood Cnc Router Machine for Hardwood and MDF Carving

    Buy cheap Cheap Factory Price 4 Axis Wood Cnc Router Machine for Hardwood and MDF Carving from wholesalers

    Buy cheap Cheap Factory Price 4 Axis Wood Cnc Router Machine for Hardwood and MDF Carving from wholesalers
    • Buy cheap Cheap Factory Price 4 Axis Wood Cnc Router Machine for Hardwood and MDF Carving from wholesalers

    Cheap Factory Price 4 Axis Wood Cnc Router Machine for Hardwood and MDF Carving

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1325-4
    Certification : CE ISO9001 SGS BV TUV ISO9000
    Price : US $3,800-8,000
    Payment Terms : L/C, D/A, T/T, Western Union
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Cheap Factory Price 4 Axis Wood Cnc Router Machine for Hardwood and MDF Carving

    Cheap Factory Price 4 Axis Wood Cnc Router Machine for Hardwood and MDF Carving


    Advantages of cnc wood carving machine:

    • Heavy duty thicker and bigger welded steel tube frame - more stronger.
    • 4.5KW water cooling spindle -low noise.
    • One 200mm rotary on one side of machine, it can engrave the materials from different views.
    • Mach3 control system can connect with computer, it is convenient to opertaion.
    • Vacuum & T-slot working table, match one vacuum pump, can fix the material more stable.

    Features of cnc wood carving machine:

    • 1300*2500*200mm effective working area

    • 4.5KW water cooling spindle ,24000 rpm

    • 5.5KW Fuling Inverter

    • Mach3 control system for 4 axis

    • Stepper FL118 motor and YAKO 2608 driver

    • Taiwan TBI ball screw for Z axis

    • ABBA #20 linear guid

    • T-slot &vacuum working table

    • 5.5KW air type vacuum pump

    • Manual tool sensor calibration

    • Highly flexible towline, fire-resistant double sheathed cable

    • Rotary device:Diameter in 200mm,Length for 2000mm

    • 1.5KW dust collector

    • Working voltage:380V,3 phase,50hz

    • Artcam software 2012

    Details

    Parameters of cnc wood carving machine:

    DescriptionParameter
    X,Y,Z Working Area1300x2500x200mm
    Table SurfaceVacuum and T-slot working table,4 zones
    FrameNew style heavy duty Welded Structure
    X, Y StructureRack and Pinion Drive, #20 ABBA Rail Linear Bearings
    Z StructureTaiwan TBI ball screw
    Spindle Power4.5kw Changsheng Water Cooling Spindle
    Spindle Speed0-24000RPM
    Inverter5.5KW Fuling Inverter
    Drive MotorsStepper FL118
    Working Voltage380v, 3 phase, 50/60HZ(Option: AC220V/50/60Hz,3PH)
    Command LanguageG Code
    Operating SystemMach3
    Computer InterfaceUSB
    Rotary device200mm diameter*2000mm length
    ColletER25
    X,Y Resolution<0.01mm
    Software CompatibilityArtcam software 2012
    Running Environment Temperature0 - 45 Centigrade
    Relative Humidity30% - 75%

    PS:All the working area and specifications can be customized according to your requests.


    Applications

    1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.


    2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.


    3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.


    4.Relief sculpture and 3D engraving.


    5.Cylindrical object.


    Packaging Details: 1.Outside package:Standard marine export plywood case.
    2.inner package:Stretch film and plastic film for humidity.
    We can package according to your requests.
    Delivery Detail: Shipped in 15 working days after payment.


    Our Service

    1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
    2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
    3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
    4, We offer 24 hours technical support by call, and email.
    5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
    6, We can record videos of operating the laser machine.
    7, Free training course in our factory.
    8.Machine will be adjusted before it is delivered, operation disk/CD was included.


    FAQ

    Question 1: I want to buy this machine,what suggestion can you give?
    Answer: Please tell me:what material do you process? What's the size of your material?(Better show me your product picture)


    Question 2: What's the delivery cost & time?
    Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.


    Question 3: Have you exported to our country?
    Answer: We have been in this field for 11 years,we have CE,CO,ISO,FDA certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.


    Question 4: This is the first time I use this kind of machine, is it easy to operate?
    There are english manual or guide video that show how to use machine.
    If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

    Question 5: If machine have any problem after I receive it, how can I do ?
    Free parts send to you in machine warranty period if machine have any problem.
    If the parts less than 0.5KG, we pay the postage.
    If it exceeds 0.5KG, you need to pay the postage.

    MOQ ?
    1 set machine, mixed order is also welcomed.


    Welcome to our factory:



    • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
    • Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
    • Just looking forward to service every customer, like you.

    Contact us:

    Skype: elephantcnc

    WhatsApp/Mobile: 0086-15064026772

    Web: www.elephant-cnc.com
