1300 * 2500 mm 4 axis cnc router engraver machine in good price with rotary device on the vacuum working table

Jinan Blue Elephant CNC Machinery Co., Ltd.
Contact Now
    Buy cheap 1300 * 2500 mm 4 axis cnc router engraver machine in good price with rotary device on the vacuum working table from wholesalers

    Buy cheap 1300 * 2500 mm 4 axis cnc router engraver machine in good price with rotary device on the vacuum working table from wholesalers
    • Buy cheap 1300 * 2500 mm 4 axis cnc router engraver machine in good price with rotary device on the vacuum working table from wholesalers

    1300 * 2500 mm 4 axis cnc router engraver machine in good price with rotary device on the vacuum working table

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1325
    Certification : CE ISO9000 SGS BV TUV ISO9001
    Price : US $5,000-8,000
    Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 15-30 working days after payment
    • Product Details
    • Company Profile

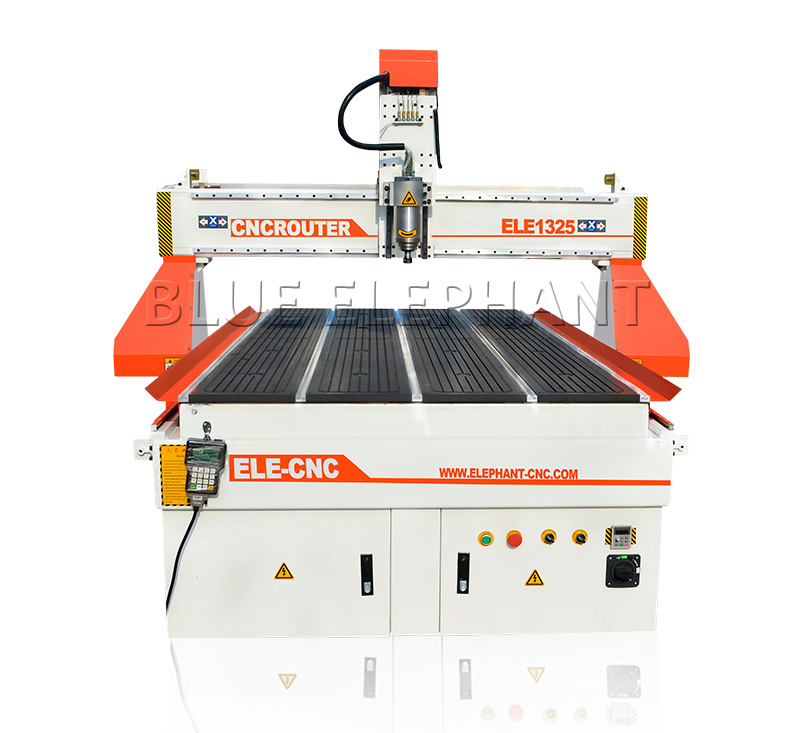

    1300 * 2500 mm 4 axis cnc router engraver machine in good price with rotary device on the vacuum working table

    1300 * 2500 mm 4 axis cnc router engraver machine in good price with rotary device on the vacuum working table


    Advantages of 1325 cnc engraving machine:

    • 10~12mm thinkness heavy duty frame. Promise the machine working stable and durable. Have a longer work life.
    • Rotary device for optional, can do cylindrical carving woodworking.
    • High soft shielded copper wires to protect against the static electricity. More safe and have a longer work life.
    • All the manuals of the machine are in English.

    Features of 1325 cnc engraving machine:

    • 1300*2500*300mm working size
    • 3Kw Changsheng water cooling spindle
    • 3.7kw FULING inverter
    • T slot &Vacuum table with 4 zones
    • Taiwan HIWIN/PMI Square Rail for X, Y, Z axis #20
    • Stepper motor FL118 and YAKO2608 driver
    • DSP A18 control system
    • 200mm diameter rotary device
    • 8mm Heavy duty Body construction
    • 7.5kw Tongyou Pump (380V, 3Ph, 50Hz)
    • 3kw old type double bag vacuum cleaner (380V, 3Ph, 50Hz)

    Product Details of 1325 cnc engraving machine:

    Parameters of 1325 cnc engraving machine:

    DescriptionsParameters
    ModleELE1325-4
    Working area1300*2500*300mm
    Control systemDSP A18 control system for 4 axis
    Control boxInner box with French Schneider rotary handle
    Spindle3kw Changsheng water cooling spindle with CW-3000 industrial chiller
    Spindle speed0-24000RPM
    MotorFL118 stepper motor
    DriverYako2608 driver
    Inverter3.7kw Fuling Inverter
    Table surfaceT-slot and vacuum working table with 4 zones
    StructureNew type thicker and bigger heavy duty welded frame and gantry
    Rotary device200mm diameter and 1800mm length for rotary device
    Voltage380V, 3Ph, 50Hz (220V for optional)
    Lubrication systemManual lubrication system (automatic for optional)
    Transmission

    X,Y rack and pinion drive; Z Taiwan TBI ball screw

    Taiwan HIWIN/PMI linear square rail 20# for X,Y,Z axis

    Traveling speed32m/min
    Working speed20m/min
    Vacuum pump7.5kw Tongyou Pump (380V, 3Ph, 50Hz)
    Dust collector3kw old type double bag vacuum cleaner (380V, 3Ph, 50Hz)

    PS:All the working area and specifications can be customized according to your requests.


    Applications:

    The machine is with 200mm rotary. It can be working on both flat and cylinde.


    Samples:

    Packaging & Delivery:

    Packaging & Delivery
    Packaging Details: 1.Outside package:Standard marine export plywood case.
    2.inner package:Stretch film and plastic film for humidity.
    We can package according to your requests.
    Delivery Detail: Shipped in 15-18 working days after payment.


    Our Service:
    1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
    2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
    3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
    4, We offer 24 hours technical support by call, and email.
    5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
    6, We can record videos of operating the laser machine.
    7, Free training course in our factory.
    8.Machine will be adjusted before it is delivered, operation disk/CD was included.


    Welcome to our factory:


    • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
    • We have our R & D department, Quality control department, and after sale & service department.
    • Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
    • We had got CE and ISO9001 certification always offer best quality machine.
    • Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

    • Just looking forward to service every customer, like you.

    Contact us:

    Skype: elephantcnc

    WhatsApp/Mobile: 0086-15064026772

    Web: www.elephant-cnc.com
