    Rotary Device 7020 Machinery Automatic 4 Axis Cnc Router Engraver Machine for Wooden Toys

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE7020
    Certification : CE, SGS, TUV, BV, ISO9000, ISO9001
    Price : US $4,580 - 8,850 / Set
    Payment Terms : L/C, D/A, D/P, Western Union, T/T, MoneyGram
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

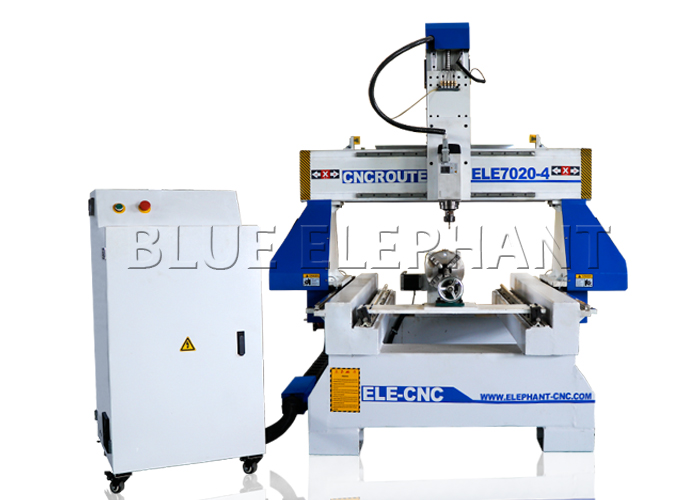

    Rotary Device 7020 Machinery Automatic 4 Axis Cnc Router Engraver Machine for Wooden Toys

    Rotary Device 7020 Machinery Automatic Cnc 4 Axis Wood Bead Engraving Making Machine for Wooden Toys

    Advantages of machinery cnc:

    • Customized model for cylinder carving, with perfect working;
    • Used Chinese Top brand 4.5kw HQD Air cooling spindle, high working ability;
    • Easy operation 4 aixs Mach3 control system

    Features of machine cnc:

    • Heavy Duty Steel machine bed; Moving Steel Gantry;
    • Helical rack and pinions for axis; Z axis by Taiwan TBI 2510 ball screw;
    • Taiwan PMI 20mm square guide rails for 3 axis;
    • Chinese HQD 4.5kw Air cooling spindle ( ER32 Collect )
    • China 5.5kw FULING Inverter;
    • FL118 Stepper motor and Powerful YAKO2811 driver;
    • Tool sensor system;
    • 4 Axis Mach3 control system with usb port;
    • Artcam Software
    • Rotary Axis(4 Jaws): Diameter: 200mm; Length:700mm;
    • Machine Design based on your customers requirements.

    Technical Parameters of machine cnc:

    DescriptionsParameters
    ModelELE7020-4
    Working areaDiameter: 200mm, Length: 700mm, Z axis: 450mm
    Control SystemMach3 4 Axis Control System
    Control boxSingle-sided separate control box
    Spindle4.5kw HQD Air Cooling Spindle
    Spindle speed0-18000rpm
    Motors5 sets FL118 stepper motors
    Drivers5 sets YAKO stepper drivers
    Inverter5.5kw Fuling Inverter
    StructureNew type thicker and bigger heavy duty welded frame and gantry
    Transmission

    X,Y axis: Helical rack and pinion drive, and Taiwan PMI #20 linear square rail.

    Z axis: Taiwan TBI ball screw, and Taiwan PMI #20 linear square rail.

    Tool sensorManual tool sensor calibration
    SoftwareARTCAM2012
    Running Environment Temperature0 - 45 Centigrade
    Relative Humidity30% - 75%

    PS:All the working area and specifications can be customized according to your requests.

    Product Details of machine cnc:

    Packaging & Delivery:

    Packaging Details: 1.Outside package:Standard marine export plywood case.

    2.inner package:Stretch film and plastic film for humidity.

    We can package according to your requests.

    Delivery Detail: Shipped in 15 working days after payment.


    Our Service:

    1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.

    2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

    3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.

    4, We offer 24 hours technical support by call, and email.

    5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.

    6, We can record videos of operating the laser machine.

    7, Free training course in our factory.

    8.Machine will be adjusted before it is delivered, operation disk/CD was included.

    Our Factory:

    • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
    • We have our R & D department, Quality control department, and after sale & service department.
    • Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
    • We had got CE and ISO9001 certification always offer best quality machine.
    • Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

    • Just looking forward to service every customer, like you.

    Contact us:

    Skype: elephantcnc

    WhatsApp/Mobile: 0086-15064026772

    Web: www.elephant-cnc.com
