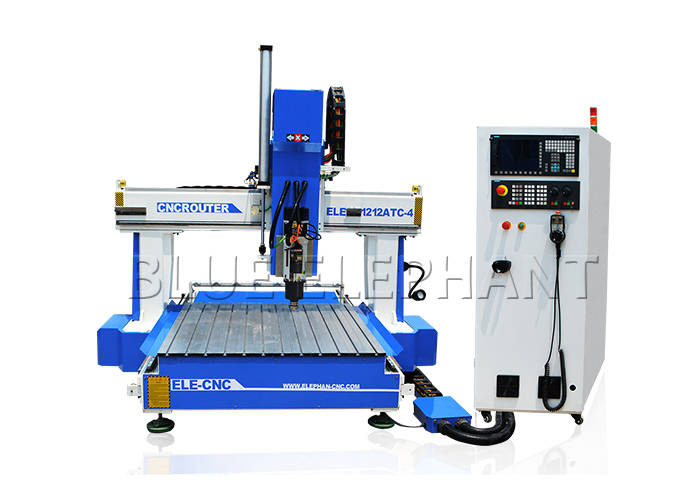

    Hightech 1212 ATC CNC Mini Wood Cutter Machine High Z Travel For Industrial

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1212
    Certification : CE, SGS, TUV, BV, ISO9000,ISO9001
    Price : US $19,000 - 35,000 / Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

    Hightech 1212 ATC CNC Mini Wood Cutter Machine High Z Travel For Industrial

    Hightech High Z Travel 1212 ATC CNC Mini Wood Mold Wooden Box Making Cutter Machine with Factory Price


    Introduction of BLUE ELEPHANT CNC 1212 ATC 4 axis router:

    ---Siemens 828D control system, powerful to support 4 axis
    ---Spindle can swing for 180 degree

    ---Smart size, can customize as your need

    The cnc router engraver machine is suitble for wooden Industry, furniture industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

    The cnc router marble engraver machine is designed for large area engraving work such as wooden Industrial, mdf industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

    In addition, it can be upgraded to be installed a rotational axis.

    Feature of 1212 4 axis atc wooden engraving machine:

    • Effective working area: 1200*1200*500mm
    • Heavy duty thicker structure as Kang’s design
    • Linear type automatic tool changer with 8 tool storage
    • German Siemens 828D control system
    • Siemens 1000w servo motor and 1000w servo driver
    • Helical rack & Gear
    • Taiwan TBI ball screw
    • Taiwan HIWIN square linear guide way 25mm for X,Y,Z axis
    • Double pieces for each Y axis, total 4 pieces for Y axis
    • Automatic Tool sensor calibration
    • Automatic oil lubrication system
    • T-slot working table
    • Japan Omron limit switch
    • France Schneider safety switch
    • Shanghai Cadiff cable
    • Working voltage:380v 3phase 50HZ

    Our Advantage of 1212 4 axis atc wooden engraving machine:

    Machine partsAdvantages
    1200*1200*500mm working area(can be customized.)
    welded steel

    More stable and stronger, even you use for many years,
    it won’t change shape.

    9kw Italy HSD air cooling spindleWorldwide brand, high quality, global warranty
    11kw Taiwan Delta inverterThe best brand in Asia
    Germany SIEMENS 828D control systemA large number of high-grade CNC functions and rich programming methods, making it flexible workpiece machining occasions can be freely used around the world.
    Taiwan HIWIN or PMI or ABBA 25mm square linear guide rail for X,Y,Z axis

    Very famous brand, can improve high precision, smooth
    transmission, fast speed, low noise, and it has 10 times
    longer life than common rail way.

    Helical rack and gear 1.25M transmission for
    X,Y axis

    Bigger loading capacity, stronger biting force, makes
    sure the machine is stable, with long lifetime.

    Taiwan TBI ball screw 2510 transmission for
    Z axis

    Famous brand, high quality, can make sure very accurate
    precision.

    T-slot working tableT-slot table can help fix small materials by clamps.
    Germany SIEMENS 828D servo motor and driverFamous brand. 4 sets in total, double motors for Y axis, very powerful, also very popular among customers.
    Automatic lubrication systemHelp lubricate the rail way, maintaining machine.
    Automatic tool sensor calibrationHelp find working home position.
    Japan OMRON limit switch

    3 pieces for X, Y, Z axis, helping each axis go back to
    working home position.

    rubber bumpers

    2 pieces for X axis and 4 pieces for Y axis, helping stop
    axis in case the machine axis is out of control.

    Highly flexible towline, fire-resitant

    Shanghai CARDIFF brand, China best brand. Long life,
    could be bent

    double-sheathed cable

    300000 times. Also can prevent the interference of static
    electricity.

    Artcam softwareWe will give you in the CD.


    Details about our 1212 4 axis atc wooden engraving machine:

    Welcome to contact us at any time!

    Our Factory:


    • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
    • We have our R & D department, Quality control department, and after sale & service department.
      Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
    • We had got CE and ISO9001 certification always offer best quality machine.
    • Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
    • Just looking forward to service every customer, like you.
