China cnc router 1325 woodworking router machine 4 Axis CNC Router
Machine For Wood , Furniture , Aluminum

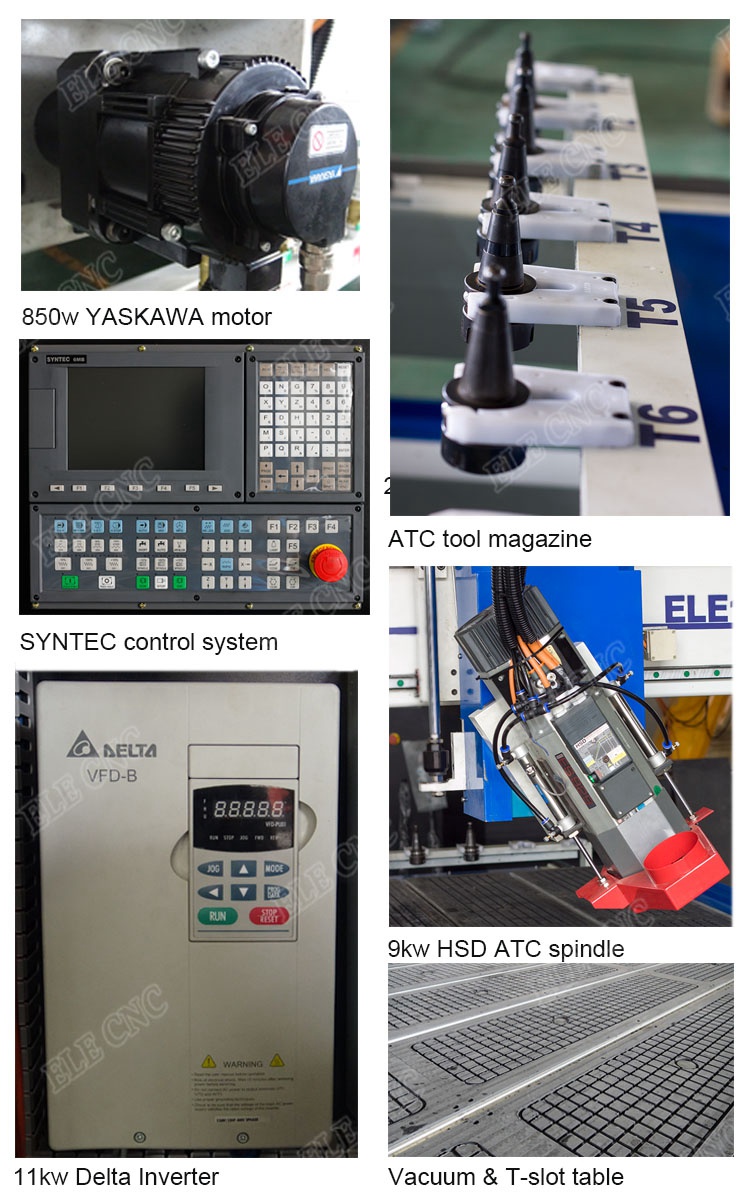

Features:

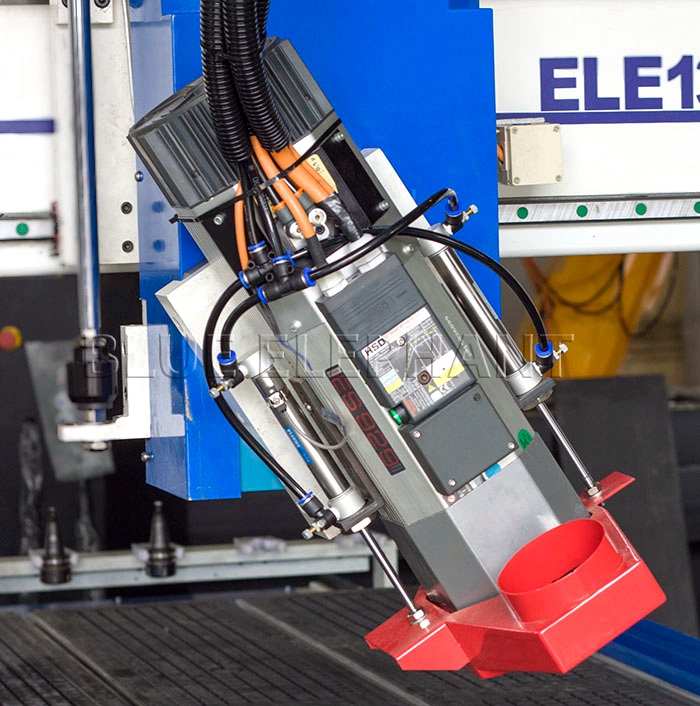

1). 9 kw HSD ATC air cooling spindle from Italy
2). 11kw DELTA inverter from Taiwan
3). Original Taiwan SYNTEC control system
4). 850w Japan YASKAWA servo motor
5). 4kw Becker vacuum pump
6). Vacuum and T-slot working table
7). 1.5kw new type dust collector.
8). Automatic lubrication system
9). 25# HINWIN square linear guide
10). Taiwan TBI ball screw
14). 1.4m SYNTEC control box
Parameters:
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x3000x400mm |
| 2 | Table Size | 1300×3000mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum and T-slot working table |
| 6 | Frame | Welded Structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and TBI Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 3.2Kw |
| 10 | Max. Rapid Travel Rate | 33000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 9kw Italy HSD ATC air cooling spindle |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | 850W Japan YASKAWA servo motor |
| 15 | Working Voltage | 380v, 3 phase, 50/60HZ (Option: AC220V/50/60Hz,3PH) |
| 16 | Command Language | G Code |
| 17 | Operating System | Taiwan SYNTEC 4 axis control System |
| 18 | Computer Interface | USB |
| 19 | Optional | Japan shimpo reducer,Becker vacuum pump,dust collector |
| 20 | Collet | IOS30 |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
Product Details:
Applicantion:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
craft sash,composite gates, cupboard doors, interior doors, sofa
legs, headboards and so on.
2. Advertising industry: advertising identification, sigh making, Acrylic engraving and
cutting,crystal word making, blaster molding, and other advertising
materials derivatives making.
3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as
well as artificial marble, sand, plastic sheeting,PVC pipe, wooden
planks and other non-metallic mold.
4. relief sculpture and 3D engraving
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood
case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc
router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within
warranty period: if the cnc router parts have any problems, we can
change the old machine parts to new ones free, but you should pay
all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any
problems, we can offer new machine parts with cost price and you
also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or
WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation
disk/CD was included.
Welcome to our factory:
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been
developed to the research and manufacturer of CNC router machine
and laser cutting engraving machine.
- We have our R & D department, Quality control department, and after
sale & service department.
- Our products are widely used in Woodworking, Advertising, Model,
Electric, CAD/CAM Industry model, Clothing, Package Printing,
Marking, Laser sealing and so on.
- We had got CE and ISO9001 certification always offer best quality
machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler
Platform!
- Just looking forward to service every customer, like you.
