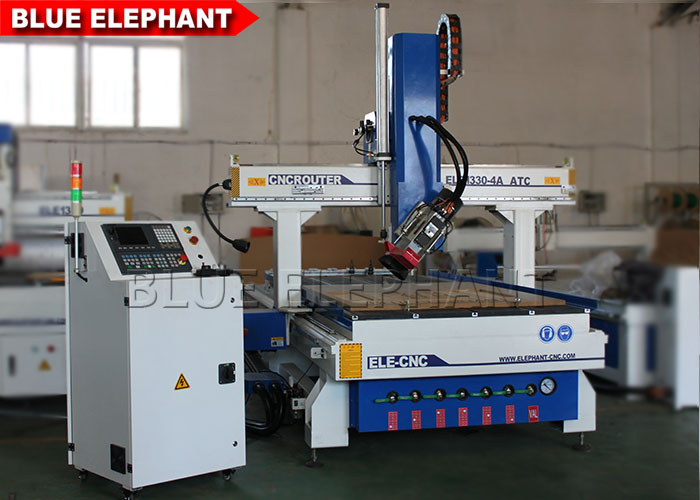

1300 * 3000mm Atc Cnc Machine Wood , 4 Axis Cnc Router Engraver Machine For Furniture Cabinets

    Buy cheap 1300 * 3000mm Atc Cnc Machine Wood , 4 Axis Cnc Router Engraver Machine For Furniture Cabinets from wholesalers

    Buy cheap 1300 * 3000mm Atc Cnc Machine Wood , 4 Axis Cnc Router Engraver Machine For Furniture Cabinets from wholesalers
    • Buy cheap 1300 * 3000mm Atc Cnc Machine Wood , 4 Axis Cnc Router Engraver Machine For Furniture Cabinets from wholesalers
    • Buy cheap 1300 * 3000mm Atc Cnc Machine Wood , 4 Axis Cnc Router Engraver Machine For Furniture Cabinets from wholesalers

    1300 * 3000mm Atc Cnc Machine Wood , 4 Axis Cnc Router Engraver Machine For Furniture Cabinets

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1330
    Certification : CE, ISO9001,SGS,CIQ
    Price : US $16,999 - 25,999 / Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

    1300 * 3000mm Atc Cnc Machine Wood , 4 Axis Cnc Router Engraver Machine For Furniture Cabinets

    1300*3000mm atc cnc machine wood , 4 axis cnc router engraver machine for furniture cabinets


    Features:


    1). 9 kw HSD ATC air cooling spindle from Italy

    2). 11kw DELTA inverter from Taiwan

    3). Original Taiwan SYNTEC control system

    4). 850w Japan YASKAWA servo motor

    5). 4kw Becker vacuum pump

    6). Vacuum and T-slot working table

    7). 1.5kw new type dust collector.

    8). Automatic lubrication system

    9). 25# HINWIN square linear guide

    10). Taiwan TBI ball screw

    14). 1.4m SYNTEC control box


    Parameters:


    NumberDescriptionParameter
    1X,Y,Z Working Area1300x3000x400mm
    2Table Size1300×3000mm
    3X,Y,Z Traveling Positioning Accuracy±0.03/300mm
    4X,Y,Z Repositioning Accuracy±0.03mm
    5Table SurfaceVacuum and T-slot working table
    6FrameWelded Structure
    7X, Y StructureRack and Pinion Drive, Hiwin Rail Linear Bearings
    8Z StructureHiwin Rail Linear Bearings and TBI Ball Screw
    9Max. Power Consumption(Without Spindle) 3.2Kw
    10Max. Rapid Travel Rate33000mm/min
    11Max. Working Speed25000mm/min
    12Spindle Power9kw Italy HSD ATC air cooling spindle
    13Spindle Speed0-24000RPM
    14Drive Motors850W Japan YASKAWA servo motor
    15Working Voltage

    380v, 3 phase, 50/60HZ

    (Option: AC220V/50/60Hz,3PH)

    16Command LanguageG Code
    17Operating SystemTaiwan SYNTEC 4 axis control System
    18Computer InterfaceUSB
    19OptionalJapan shimpo reducer,Becker vacuum pump,dust collector
    20ColletIOS30
    21X,Y Resolution<0.01mm
    22Software CompatibilityType3/UcancameV9 Software, (Option: Artcam Software)
    23Running Environment Temperature0 - 45 Centigrade
    24Relative Humidity30% - 75%

    Applicantion:


    1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.


    2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.


    3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.


    4. relief sculpture and 3D engraving
