    CNC Woodwork machine large bed , cnc wood cutting machine 380V , 3Phase , 50Hz

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1826
    Certification : CE, ISO, SGS, BV, TUV
    Price : US $5,600 - 8,000 / Set
    Payment Terms : L/C, D/P, D/A, T/T, Western Union, MoneyGram
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

    CNC Woodwork machine large bed , cnc wood cutting machine 380V , 3Phase , 50Hz

    Low-cost cnc woodwork machine large bed , cnc wood cutting machine price in india


    Advantages of cnc machine large bed:

    • Heavy duty structure , air cooling spindle.
    • Complete vacuum table, you can fix the material by vacuum pump.
    • DSP handle controller with USB interface, it's off line operate. when the power is cut off, it can continue to process from where it stop.

    Features of cnc machine large bed:

    • Effective working area 1830*2600*300 mm
    • Bigger welded steel tube machine body
    • 4.5KW HQD air cooling spindle,18000 RPM
    • 5.5KW Fuling inverter
    • Stepper motors FL118 and YAKO2608 drivers
    • Control system DSPA11 with USB interface
    • HIWIN/PMI #20 linear square guide way for X,Y,Z axis
    • Taiwan TBI ball screw for Z axis
    • Vacuum table
    • Japan OMRON limit switch for X,Y,Z axis
    • Tool sensor calibrate
    • Oil Lubrication System
    • Voltage :380V,3phase ,50HZ

    Parameters of cnc machine large bed:


    DescriptionsParameters
    ModleELE1826
    Working area1830*2600*300mm
    Control systemRichauto DSP A11 control system
    Working Voltage380V, 3Ph, 50Hz (220V for optional)
    Spindle4.5kw Chinese brand HQD air cooling spindle
    Spindle speed0-18000rpm
    Inverter5.5kw Fuling inverter
    Motor and DriverFL118 stepper motor and Yako 2608 driver
    Table surfaceT-slot and vacuum working table
    StructureNew type thicker and bigger heavy duty welded frame and gantry
    Lubrication systemManual lubrication system
    Transmission

    X,Y axis: rack and pinion drive

    Z axis: Taiwan TBI ball screw

    X,Y,Z axis: Taiwan HIWIN linear square rail #20

    Control boxInner box
    ColletER25

    PS:All the working area and specifications can be customized according to your requests.


    Applications:


    It's apply for the wood furniture.

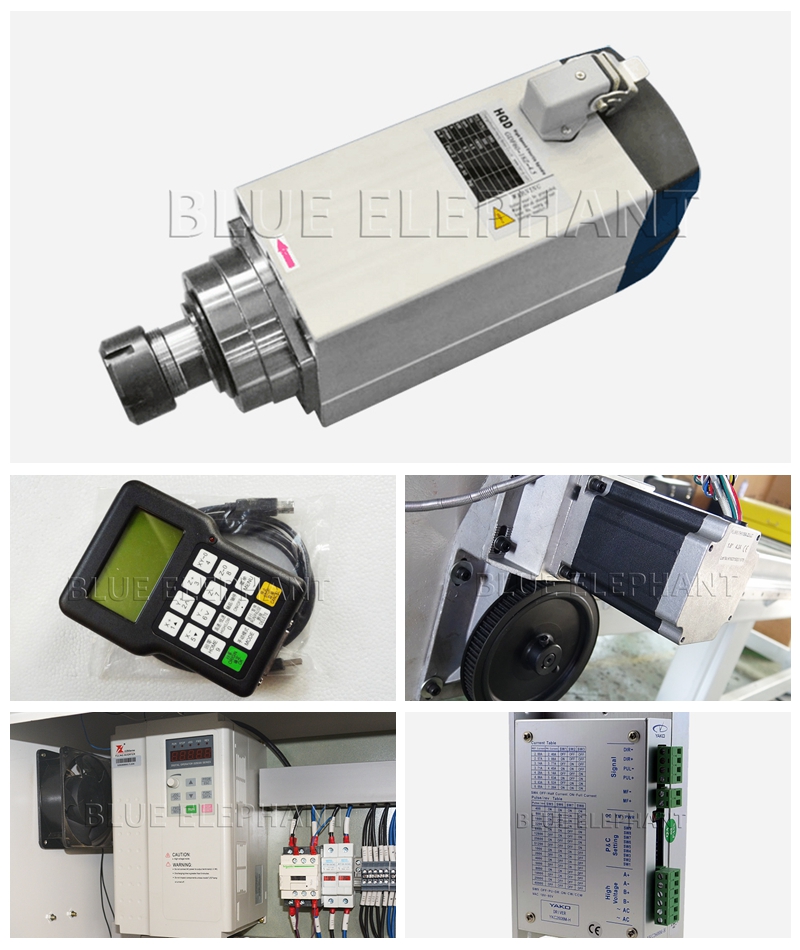

    Product details of cnc machine large bed:
    Quality CNC Woodwork machine large bed , cnc wood cutting machine 380V , 3Phase , 50Hz for sale
